M48Z35Y-70MH1E - STMicroelectronics

Description: NVSRAM (Non-Volatile SRAM) Memory IC 256Kbit Parallel 70 ns 28-SOH

Download M48Z35Y-70MH1E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

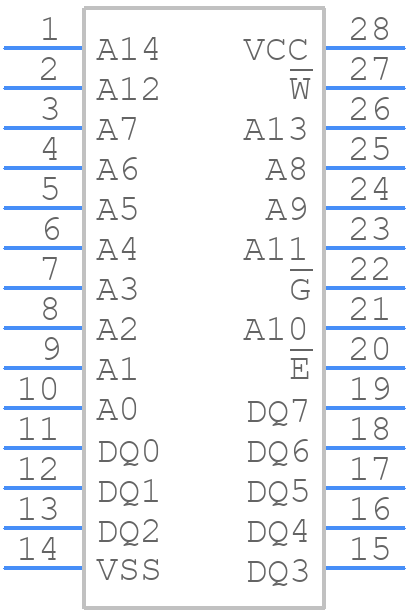

M48Z35Y-70MH1E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

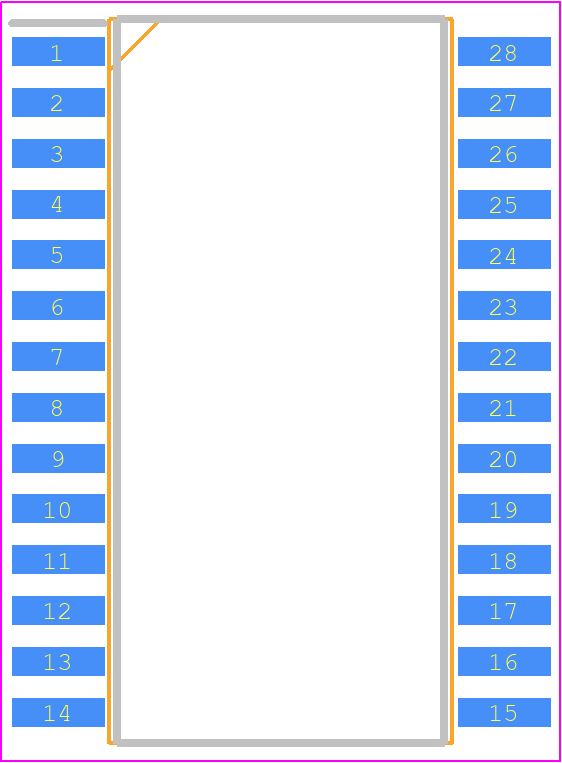

M48Z35Y-70MH1E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SOH28
click to zoom
3D Models
M48Z35Y-70MH1E - STMicroelectronics - 3D model - Small Outline Packages - SOH28
click to zoom

M48Z35Y-70MH1E Details

  • Manufacturer Part Number:

    M48Z35Y-70MH1E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOIC-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Access Time-Max:

    70 ns

  • Additional Feature:

    SNAPHAT BATTERY TO BE ORDERED SEPARATELY

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    18.1 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    NON-VOLATILE SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    32KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.5

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.05 mm

  • Standby Current-Max:

    0.003 A

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    8.56 mm
