M48Z512AV-85PM1 - STMicroelectronics

M48Z512AV-85PM1 Details

• Manufacturer Part Number:

  M48Z512AV-85PM1

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

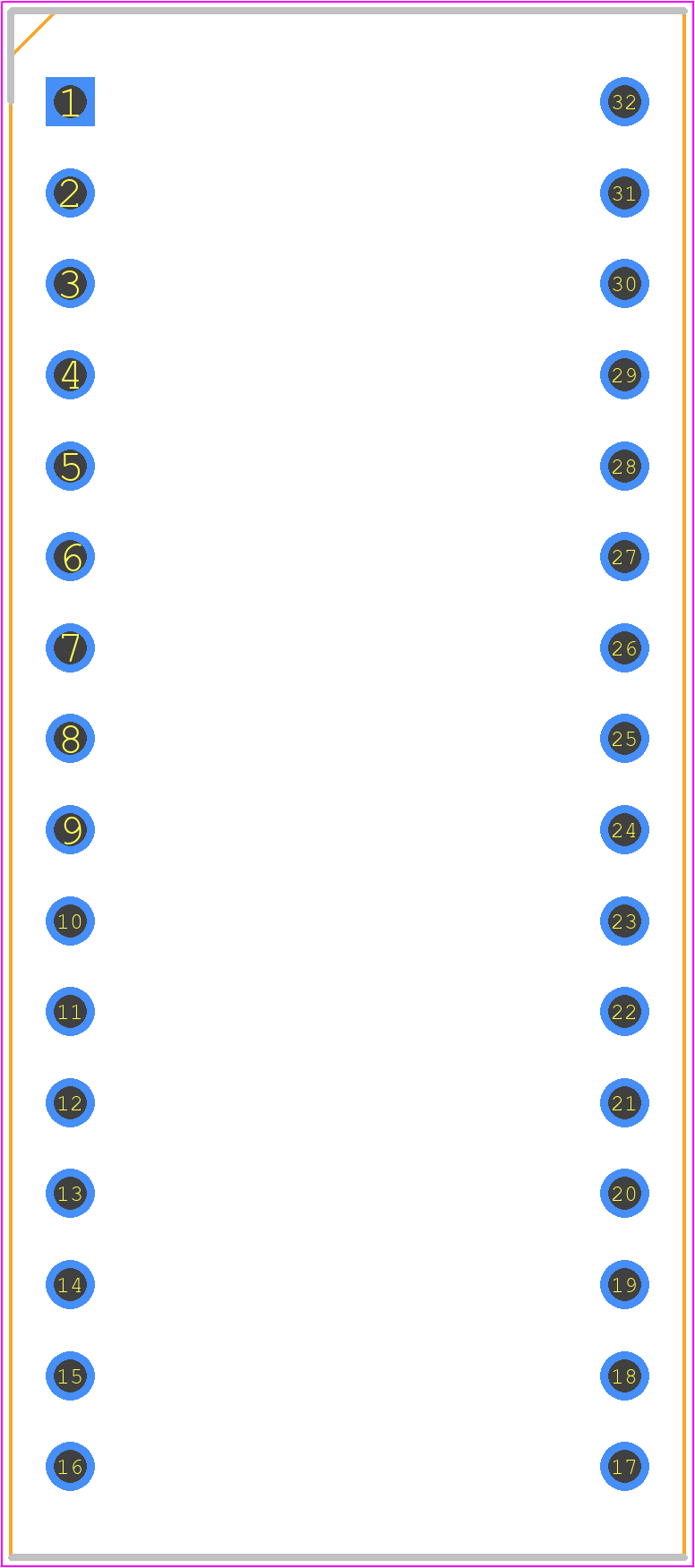

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, MODULE, DIP-32

• Pin Count:

  32

• ECCN Code:

  3A991.b.2.a

• HTS Code:

  8542.32.00.41

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Access Time-Max:

  85 ns

• JESD-30 Code:

  R-PDIP-T32

• JESD-609 Code:

  e3

• Length:

  42.8 mm

• Memory Density:

  4194304 bit

• Memory IC Type:

  NON-VOLATILE SRAM MODULE

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  32

• Number of Words:

  524288 words

• Number of Words Code:

  512000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  512KX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP32,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  9.52 mm

• Standby Current-Max:

  0.003 A

• Supply Current-Max:

  0.05 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
