Part Image

M50-3501542 - Harwin

Description: 1.27mm (0.05") Pitch DIL Vertical Throughboard Pin Header, selective gold + tin, 15+15 contacts

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

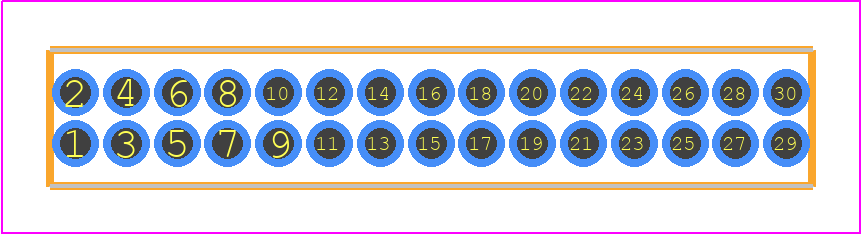

M50-3501542 - Harwin PCB footprint - Other - Other - M50-3501542
click to zoom

3D Models

M50-3501542 - Harwin  - 3D model - Other - M50-3501542
click to zoom

M50-3501542 Details

  • Manufacturer Part Number:

    M50-3501542

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • Risk Rank:

    1.36

  • Samacsys Modified On:

    2022-05-26 18:29:40

  • YTEOL:

    9.15

  • Additional Feature:

    ROHS COMPLIANT

  • Body Breadth:

    0.134 inch

  • Body Depth:

    0.039 inch

  • Body Length:

    0.75 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1400VAC V

  • Durability:

    300 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.27 mm

  • Plating Thickness:

    3u inch

  • Rated Current (Signal):

    1 A

  • Reliability:

    COMMERCIAL

  • Subcategory:

    Headers and Edge Type Connectors

  • Terminal Length:

    0.091 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

Trust Checks

Manufacturer Provided
System Verified
Community Approved
Sponsored

M50-3501542 Overview

Use the download button to access the M50-3501542 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M50-3, or try a keyword search, such as Headers and Edge Type Connectors||Two Part Board Connectors
