M50-3650542R footprint, schematic symbol and 3D model by Harwin

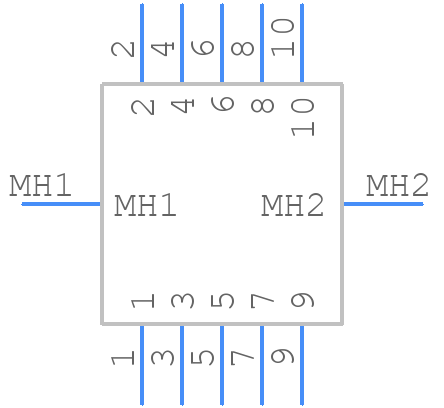

Symbol

click to zoom

PCB Footprints

M50-3650542R - Harwin PCB footprint - Other - Other - M50-3650542R-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M50-3650542R
Part Number M50-3650542R
Manufacturer Harwin
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - M50-3650542R-4
Released Date Oct 28, 2018
Last Modified Date Jan 2, 2026 1:22 PM UTC
Pinout / Pin List Click Here (Member Only)

M50-3650542R Details

Manufacturer Part Number:
M50-3650542R
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Harwin
YTEOL:
9.4
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
BRASS
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
10
UL Flammability Code:
94V-0

M50-3650542R Frequently Asked Questions (FAQs)

The recommended torque for the M50-3650542R connector is 0.5 Nm to 1.5 Nm (0.37 lbf.in to 1.06 lbf.in).
Yes, the M50-3650542R connector is designed to withstand high-vibration environments and is suitable for applications where vibration is a concern.
Yes, the M50-3650542R connector is designed to operate in harsh environments, including high temperatures, humidity, and exposure to chemicals.
The M50-3650542R connector has a mating cycle life of 500 cycles minimum.
Yes, the M50-3650542R connector is designed to be compatible with automated assembly processes, including pick-and-place machines and robotic assembly lines.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

M50-3650542R Overview

Use the download button to access the M50-3650542R schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M50-3, or try a keyword search, such as Headers and Edge Type Connectors
