The recommended torque for the screw locks on the M50-3801742 connector is 0.5 Nm to 1.5 Nm, as specified by Harwin's application notes.
Yes, the M50-3801742 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration, and 3 axes, according to Harwin's environmental testing standards.
Yes, the M50-3801742 connector is designed to operate in harsh environments, with a temperature range of -40°C to +125°C and humidity resistance of 95% RH at 40°C, making it suitable for use in industrial, aerospace, and defense applications.
While the M50-3801742 connector is optimized for use with AWG 24-30 wires, it can accommodate smaller wire sizes, such as AWG 32, with reduced current-carrying capacity. However, using larger wire sizes may compromise the connector's reliability and performance.
Yes, to ensure reliable operation and prevent damage to the connector, it is recommended to follow Harwin's PCB layout guidelines, including maintaining a minimum clearance of 1.5 mm around the connector, using a solder mask to prevent solder bridging, and avoiding via holes under the connector.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M50-3801742 Overview

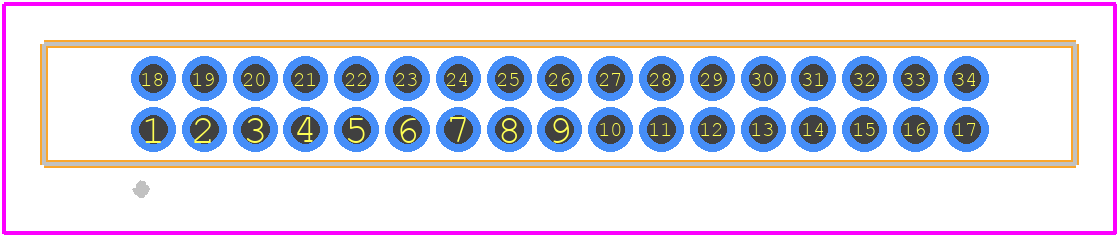

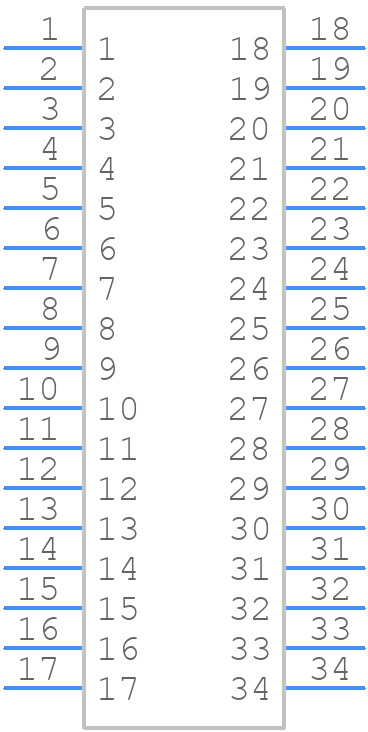

Use the download button to access the M50-3801742 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M50-3,
or try a keyword search, such as Wires and Cables
