The recommended torque for the M50-3802042 screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
While the datasheet specifies 24-20 AWG wire size, the M50-3802042 connector can accommodate smaller wire sizes with proper wire preparation and strain relief. However, it's not recommended to use larger wire sizes as it may compromise the connector's performance and reliability.
To ensure proper wire strain relief, use a suitable cable tie or wire management system to secure the wires to the connector or the PCB. This will prevent wire damage and ensure reliable connections.
The M50-3802042 connector is designed to meet the requirements of IEC 61984, which includes vibration and shock testing. However, it's essential to consult with Harwin's application engineers to ensure the connector meets the specific requirements of your application.
The M50-3802042 connector is designed to operate in temperatures ranging from -40°C to +125°C. However, for high-humidity applications, it's recommended to use a conformal coating or potting compound to protect the connector from moisture ingress. Consult with Harwin's application engineers for specific guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M50-3802042 Overview

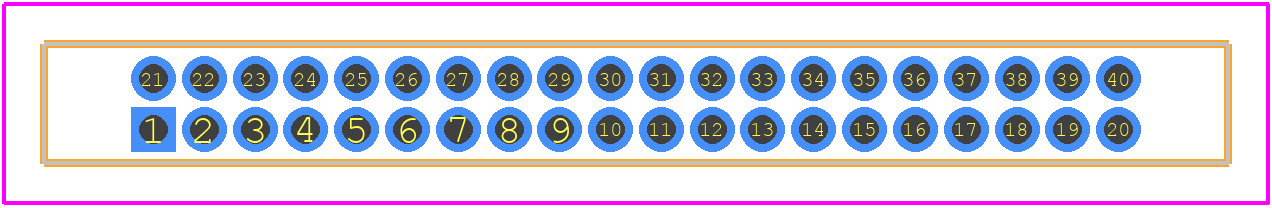

Use the download button to access the M50-3802042 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M50-3,
or try a keyword search, such as Wires and Cables
