M55-6005042R - Harwin

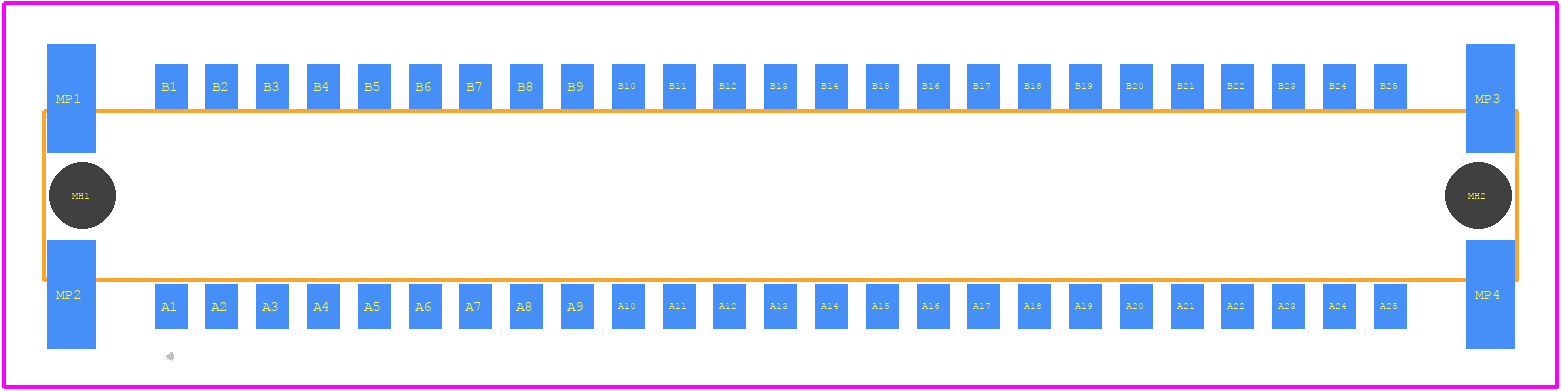

M55-6005042R Details

• Manufacturer Part Number:

  M55-6005042R

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Harwin

• YTEOL:

  8.75

• Board Mounting Option:

  HOLE .064-.072

• Body Breadth:

  0.165 inch

• Body Depth:

  0.246 inch

• Body Length:

  1.45 inch

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  25 mΩ

• Contact Style:

  SQ PIN-SKT

• Durability:

  500 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  0.8 N

• Insulation Resistance:

  10000000000 Ω

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.05 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.5 mm

• Plating Thickness:

  0.98u inch

• Rated Current (Signal):

  1.2 A

• Reference Standard:

  UL

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  50

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.2 N
