Part Image

M55-6015042R - Harwin

Description: Archer Kontrol (1.27mm pitch) DIL Vertical Socket SMT high performance connector, 9.05mm connector height, in Tape and Reel - 50 contacts (25+25)

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

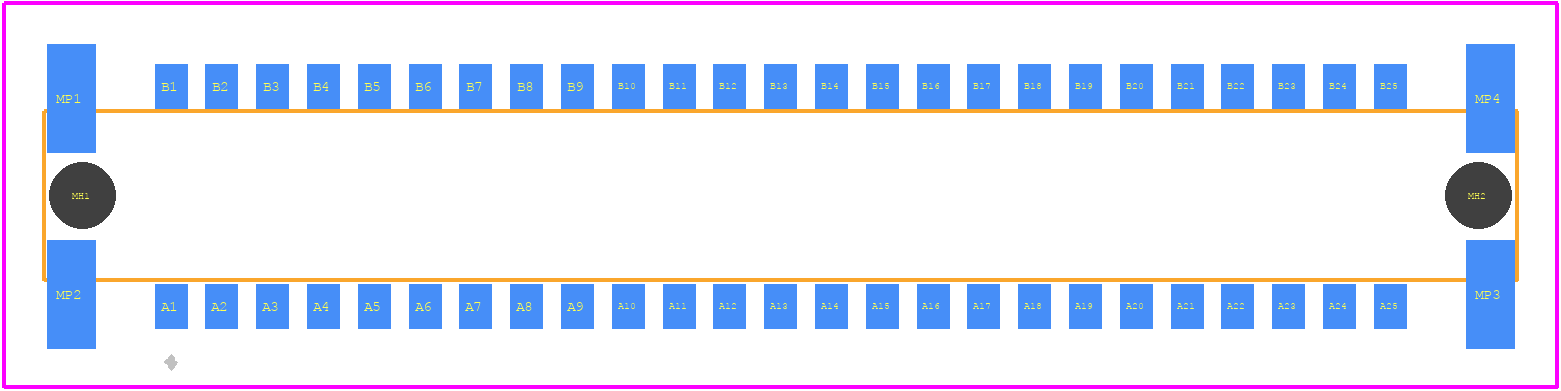

M55-6015042R - Harwin PCB footprint - Other - Other - M55-6015042R
click to zoom

3D Models

M55-6015042R - Harwin  - 3D model - Other - M55-6015042R
click to zoom

M55-6015042R Details

  • Manufacturer Part Number:

    M55-6015042R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • Risk Rank:

    1.8

  • YTEOL:

    8.76

  • Board Mounting Option:

    HOLE .064-.072

  • Body Breadth:

    0.165 inch

  • Body Depth:

    0.356 inch

  • Body Length:

    1.45 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    0.8 N

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.5 mm

  • Plating Thickness:

    0.98u inch

  • Rated Current (Signal):

    1.2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.2 N

Trust Checks

Manufacturer Provided
System Verified
Community Approved
Sponsored

M55-6015042R Overview

Use the download button to access the M55-6015042R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M55-6, or try a keyword search, such as Headers and Edge Type Connectors
