The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm. It's essential to follow the recommended torque to ensure proper mating and prevent damage to the connector.
Yes, the M55-6104042R connector is designed to withstand high-vibration environments. It has a ruggedized design and a secure screw-locking mechanism to ensure reliable connections in demanding applications.
The M55-6104042R connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability and longevity.
Yes, the M55-6104042R connector is part of the Harwin M55 series, which offers a range of connectors, adapters, and accessories. The connector is designed to be compatible with other M55 series products, allowing for flexible and customizable interconnect solutions.
The typical lead time for the M55-6104042R connector varies depending on the region and availability. If you need a faster delivery, you can consider alternative connectors from Harwin or other manufacturers. It's recommended to check with authorized distributors or Harwin's customer support for the latest lead times and alternative options.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M55-6104042R Overview

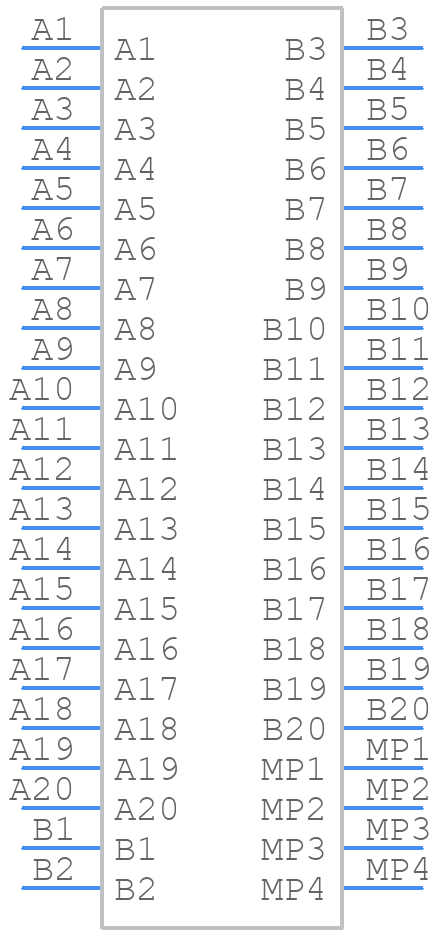

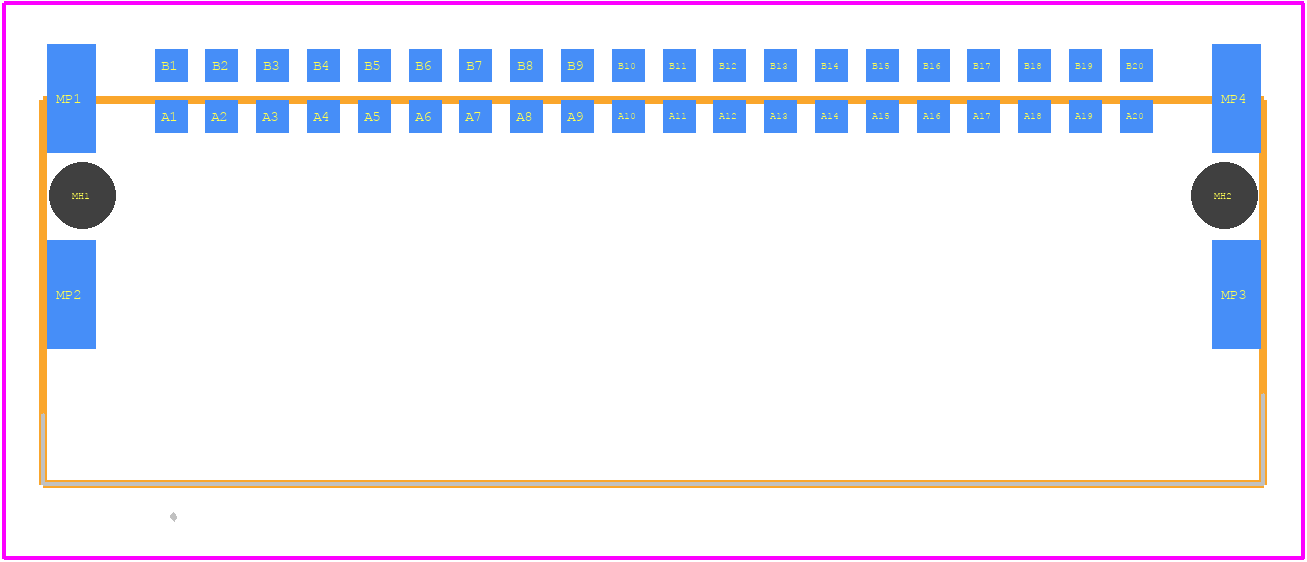

Use the download button to access the M55-6104042R schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like M55-6,
or try a keyword search, such as Headers and Edge Type Connectors
