M55-7005042R - Harwin

Description: Kontrol: 25+25 Pos Plug DIL Straight SMT Connector 6.75mm high Pegs SMT Hold-down (T+R)

Download M55-7005042R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M55-7005042R - Harwin - PCB symbol
click to zoom
PCB Footprints

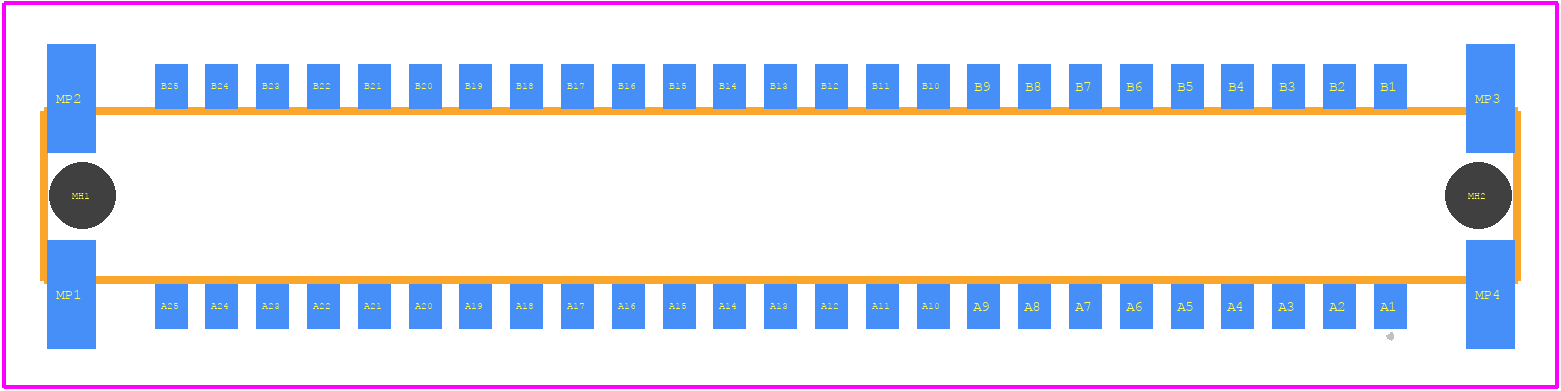

M55-7005042R - Harwin PCB footprint - Other - Other - M55-7005042R-4
click to zoom
3D Models
M55-7005042R - Harwin - 3D model - Other - M55-7005042R-4
click to zoom

M55-7005042R Details

  • Manufacturer Part Number:

    M55-7005042R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9

  • Board Mounting Option:

    HOLE .064-.072

  • Body Breadth:

    0.283 inch

  • Body Depth:

    0.266 inch

  • Body Length:

    1.45 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.5 mm

  • Plating Thickness:

    0.98u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1.2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

M55-7005042R Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm. It's essential to follow this torque specification to ensure proper mating and prevent damage to the connector.
  • Yes, the M55-7005042R connector is designed to withstand high-vibration environments. It has a ruggedized design and a secure screw-locking mechanism to ensure reliable connections in demanding applications.
  • The M55-7005042R connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance and longevity.
  • Yes, the M55-7005042R connector is part of the Harwin M55 series, which offers a range of connectors and adapters that are designed to be compatible with each other. You can use the M55-7005042R connector with other M55 series connectors or adapters to create custom solutions.
  • The typical lead time for delivery of the M55-7005042R connector varies depending on the region, quantity, and availability. It's best to check with Harwin or an authorized distributor for the most up-to-date lead time information.
