M55302/110-10 footprint, schematic symbol and 3D model by TE Connectivity

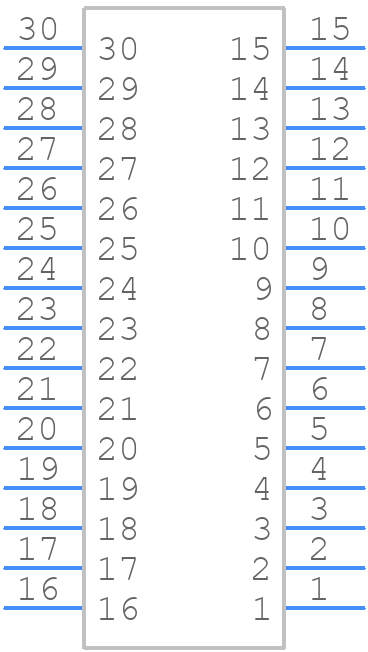

Symbol

click to zoom

PCB Footprints

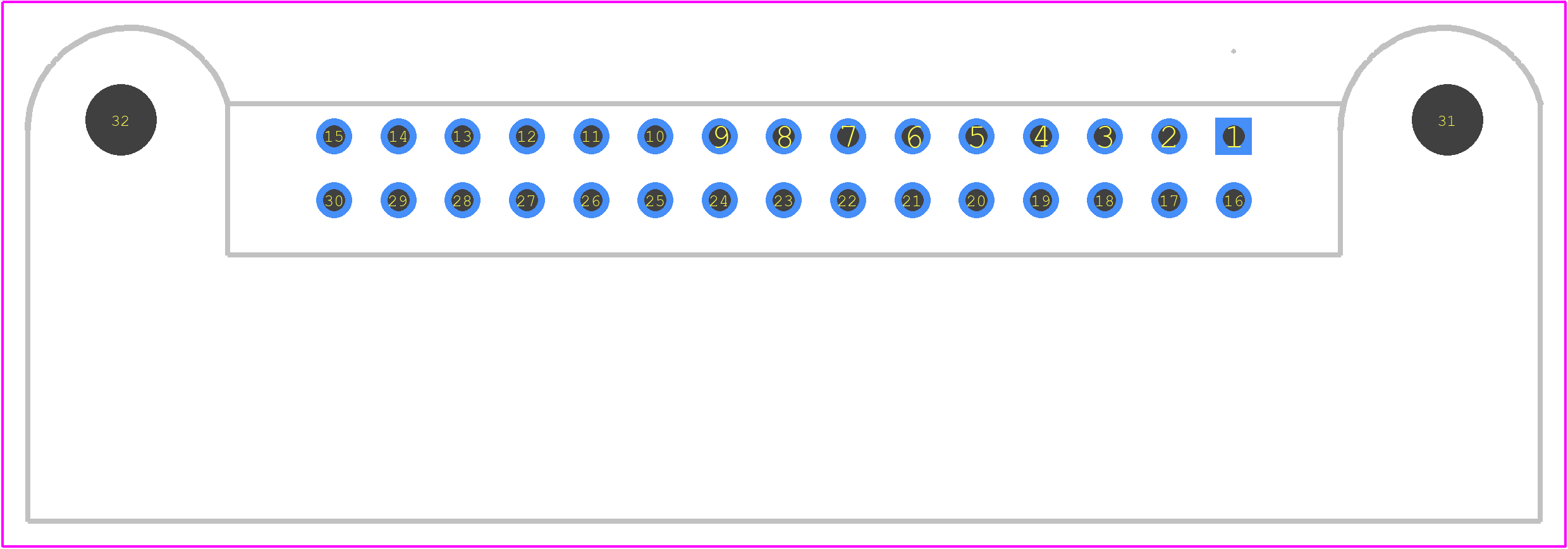

M55302/110-10 - TE Connectivity PCB footprint - Other - Other - M55302/110-10-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M55302/110-10
Part Number M55302/110-10
Manufacturer TE Connectivity
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - M55302/110-10-1
Released Date Apr 25, 2026
Last Modified Date Apr 25, 2026 1:22 PM UTC
Pinout / Pin List Click Here (Member Only)

M55302/110-10 Details

Manufacturer Part Number:
M55302/110-10
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
4 Weeks, 6 Days
Manufacturer:
TE Connectivity
YTEOL:
9.1
Additional Feature:
STANDARD: MIL-C-55302
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e0
MIL Conformance:
YES
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
30

M55302/110-10 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure reliable connections.
Yes, the M55302/110-10 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
Yes, the M55302/110-10 is rated for outdoor use, with a temperature range of -40°C to 125°C and a rating of IP67 (dust-tight and waterproof).
The maximum wire size that can be used with the M55302/110-10 is 16 AWG (1.5 mm²).
It is not recommended to use the M55302/110-10 with a different mating connector from a different manufacturer, as compatibility and performance cannot be guaranteed.

Trust Checks

Community Provided

System Verified

Community Approved

M55302/110-10 Overview

Use the download button to access the M55302/110-10 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M5530, or try a keyword search, such as Headers and Edge Type Connectors
