M55302/110-11 footprint, schematic symbol and 3D model by TE Connectivity

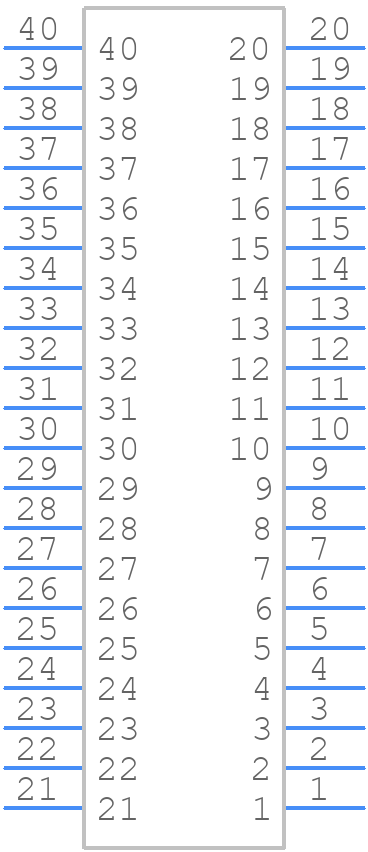

Symbol

click to zoom

PCB Footprints

M55302/110-11 - TE Connectivity PCB footprint - Other - Other - M55302/110-11-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M55302/110-11
Part Number M55302/110-11
Manufacturer TE Connectivity
Pin Count 40
Part Category Connector
Package Category Other
Footprint Name Other - M55302/110-11-2
Released Date Dec 17, 2024
Last Modified Date Dec 17, 2024 8:25 AM UTC
Pinout / Pin List Click Here (Member Only)

M55302/110-11 Details

Manufacturer Part Number:
M55302/110-11
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
20 Weeks, 6 Days
Manufacturer:
TE Connectivity
YTEOL:
9.1
Additional Feature:
STANDARD: MIL-C-55302
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e0
MIL Conformance:
YES
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
40

M55302/110-11 Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the M55302/110-11 connector, as specified in the TE Connectivity application notes.
Yes, the M55302/110-11 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration, and 3.5 mm peak-to-peak displacement, as per the datasheet.
Yes, the M55302/110-11 connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and a humidity rating of 95% RH at 40°C, as per the datasheet.
The M55302/110-11 connector has a mating cycle life of 500 cycles, as specified in the datasheet.
Yes, the M55302/110-11 connector is part of the TE Connectivity M55302 series, which is designed to be compatible with other connectors in the same series, but it's always recommended to verify compatibility before use.

Trust Checks

Community Provided

System Verified

Community Approved

M55302/110-11 Overview

Use the download button to access the M55302/110-11 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M5530, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
