M55302/110-12 - TE Connectivity

Description: Connector Header Through Hole, Right Angle 50 position 0.100" (2.54mm)

Download M55302/110-12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M55302/110-12 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

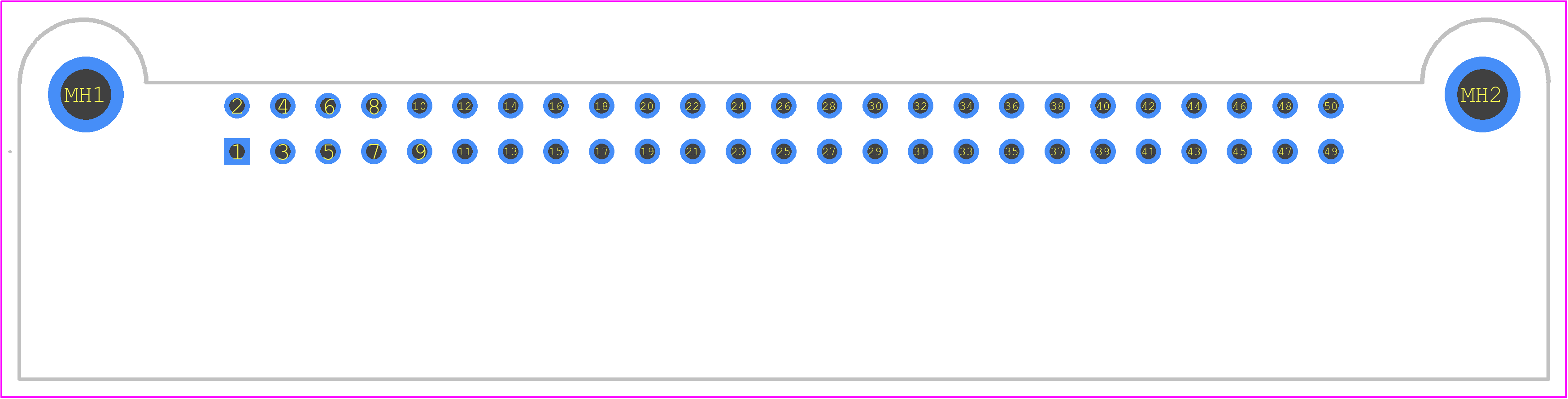

M55302/110-12 - TE Connectivity PCB footprint - Other - Other - M55302/110-12-1
click to zoom
3D Models
M55302/110-12 - TE Connectivity - 3D model - Other - M55302/110-12-1
click to zoom

M55302/110-12 Details

  • Manufacturer Part Number:

    M55302/110-12

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    26 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    STANDARD: MIL-C-55302

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e0

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

M55302/110-12 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the M55302/110-12 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the M55302/110-12 is rated for outdoor use, with a temperature range of -55°C to 125°C and a rating of IP67 (dust-tight and protected against immersion in water up to 1m depth).
  • No, the M55302/110-12 is designed for use with wire sizes 18-24 AWG. Using a larger wire size may compromise the connector's performance and reliability.
  • Yes, the M55302/110-12 is designed to meet the requirements of MIL-STD-55302, making it suitable for use in military and aerospace applications.
