M55302/110-13 - TE Connectivity

Description: Rectangular MIL Spec Connectors 2 ROW BOX PIN 60 POS R/A

Download M55302/110-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M55302/110-13 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

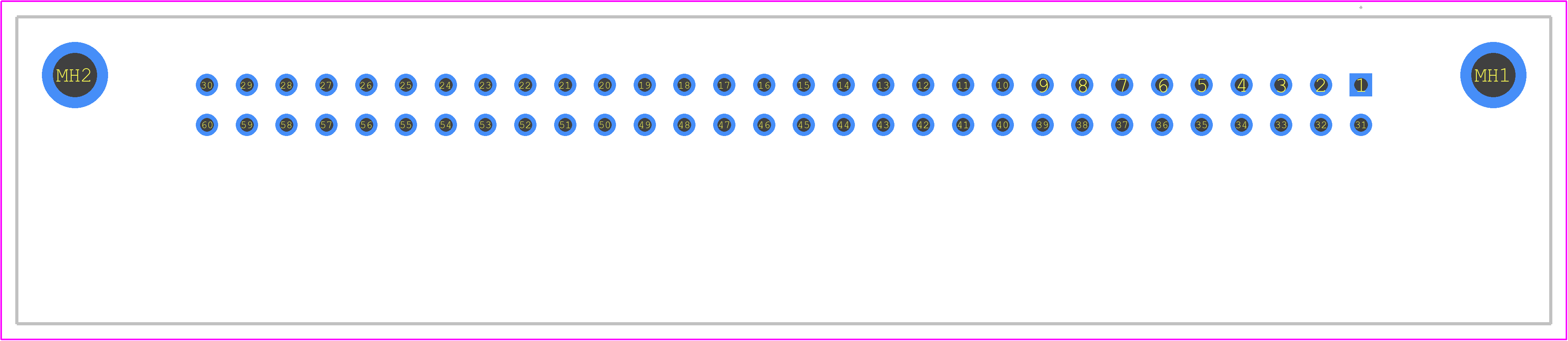

M55302/110-13 - TE Connectivity PCB footprint - Other - Other - M55302/110-13-3
click to zoom
3D Models
M55302/110-13 - TE Connectivity - 3D model - Other - M55302/110-13-3
click to zoom

M55302/110-13 Details

  • Manufacturer Part Number:

    M55302/110-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    STANDARD: MIL-C-55302

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e0

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    60

M55302/110-13 Frequently Asked Questions (FAQs)

  • The recommended torque value for the M55302/110-13 connector is 10-12 in-lbs (1.1-1.4 Nm) for the screw-locking mechanism.
  • Yes, the M55302/110-13 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
  • Yes, the M55302/110-13 connector is designed to operate in harsh environments, with a temperature range of -65°C to 200°C and humidity resistance up to 95% RH.
  • Yes, the M55302/110-13 connector is designed to be compatible with other TE Connectivity products and systems, including their circular connectors, cable assemblies, and backshells.
  • The typical lead time for delivery of the M55302/110-13 connector can vary depending on the quantity, location, and availability, but it is usually around 6-12 weeks.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M55302/110-13 Overview

Use the download button to access the M55302/110-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M5530, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
