M55302/110-18 - TE Connectivity

Description: Conn Header Box PIN 110 POS 2.54mm Solder RA Thru-Hole

Download M55302/110-18 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M55302/110-18 - TE Connectivity - PCB symbol
click to zoom

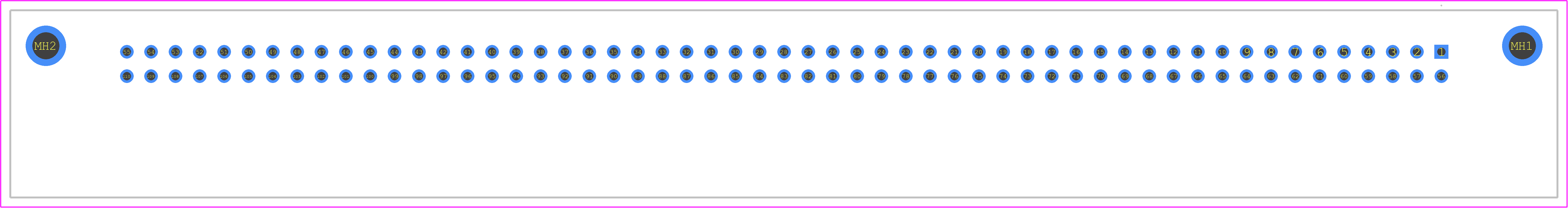

PCB Footprints
M55302/110-18 - TE Connectivity PCB footprint - Other - Other - M55302/110-18-3
click to zoom
3D Models
M55302/110-18 - TE Connectivity - 3D model - Other - M55302/110-18-3
click to zoom

M55302/110-18 Details

  • Manufacturer Part Number:

    M55302/110-18

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    20 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    STANDARD: MIL-C-55302

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e0

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    110

M55302/110-18 Frequently Asked Questions (FAQs)

  • The recommended torque for the M55302/110-18 connector is 10-12 in-lbs (1.1-1.4 Nm) for the screw clamp and 15-18 in-lbs (1.7-2.0 Nm) for the nut and bolt.
  • Yes, the M55302/110-18 connector is designed to withstand high-vibration environments and meets the requirements of MIL-DTL-55302, which includes vibration testing.
  • Yes, the M55302/110-18 connector is designed to operate in harsh environments, including high temperatures up to 200°C and high humidity. However, it's essential to follow the recommended derating and installation guidelines to ensure reliable performance.
  • The M55302/110-18 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • Yes, the M55302/110-18 connector is designed to be compatible with other MIL-DTL-55302 connectors, ensuring interoperability and flexibility in system design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M55302/110-18 Overview

Use the download button to access the M55302/110-18 schematic symbol, PCB footprint, and 3D model.
