M55302/129-09 - TE Connectivity

Description: Conn Box Connector HDR 90 POS 2.54mm Solder RA Thru-Hole Package

Download M55302/129-09 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M55302/129-09 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

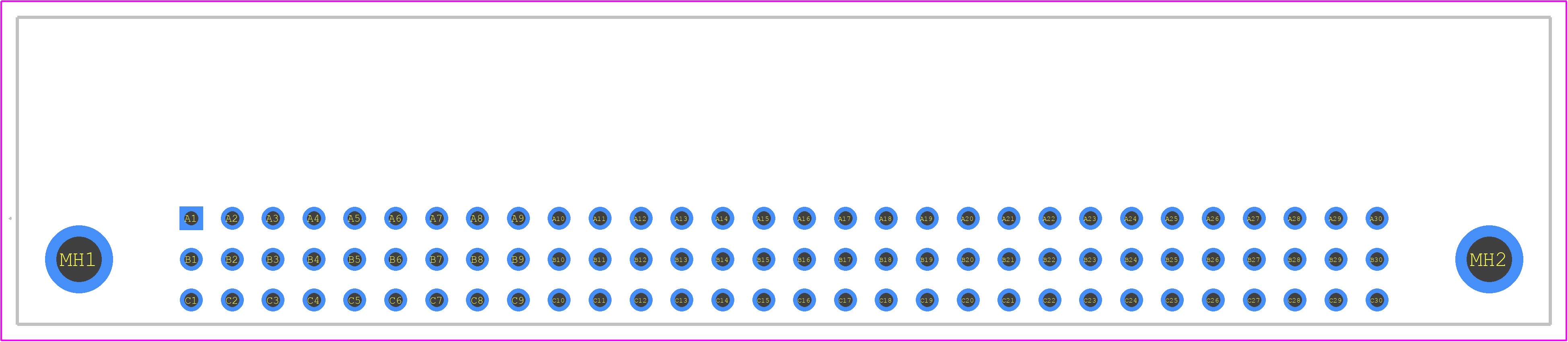

M55302/129-09 - TE Connectivity PCB footprint - Other - Other - M55302/129-09-1
click to zoom
3D Models
M55302/129-09 - TE Connectivity - 3D model - Other - M55302/129-09-1
click to zoom

M55302/129-09 Details

  • Manufacturer Part Number:

    M55302/129-09

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    STANDARD: MIL-C-55302

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    90

M55302/129-09 Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-15 in-lbs (1.1-1.7 Nm) for the M55302/129-09 connector, as specified by TE Connectivity.
  • Yes, the M55302/129-09 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the M55302/129-09 connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and a humidity rating of 95% RH at 40°C.
  • The M55302/129-09 connector has a mating cycle life of 500 cycles, as specified by TE Connectivity.
  • Yes, the M55302/129-09 connector is designed to be compatible with other TE Connectivity products, including cable assemblies and backshells.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M55302/129-09 Overview

Use the download button to access the M55302/129-09 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M5530, or try a keyword search, such as Headers and Edge Type Connectors
