M57184N-715B - POWEREX

Description: High Voltage Input DC-to-DC Converter

Download M57184N-715B Model

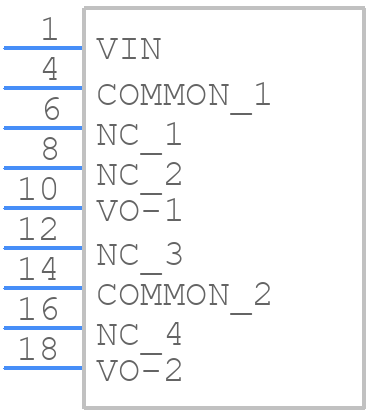

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

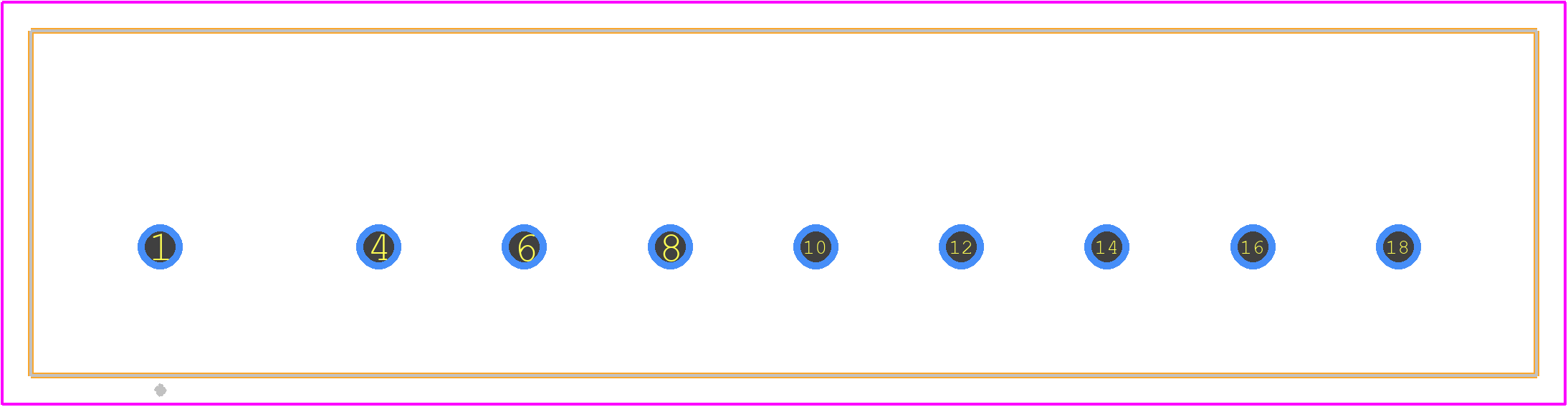

M57184N-715B - POWEREX PCB footprint - Other - Other - M57184N-715B-2
click to zoom
3D Models
M57184N-715B - POWEREX  - 3D model - Other - M57184N-715B-2
click to zoom

M57184N-715B Details

  • Manufacturer Part Number:

    M57184N-715B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-9

  • ECCN Code:

    EAR99

  • Manufacturer:

    Powerex Power Semiconductors

  • YTEOL:

    7

  • Additional Feature:

    ADDITIONAL 5V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    360 V

  • Input Voltage-Min:

    140 V

  • Input Voltage-Nom:

    280 V

  • JESD-30 Code:

    R-XSMA-P9

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    9

  • Output Voltage-Max:

    16 V

  • Output Voltage-Min:

    14 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6.25 W

  • Trim/Adjustable Output:

    NO

M57184N-715B Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the M57184N-715B is -40°C to 150°C.
  • The recommended storage temperature range for the M57184N-715B is -40°C to 30°C.
  • The maximum power dissipation for the M57184N-715B is 125W.
  • The thermal resistance from junction to case (RθJC) for the M57184N-715B is 1.5°C/W.
  • The recommended soldering temperature and time for the M57184N-715B is 260°C for 10 seconds.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M57184N-715B Overview

Use the download button to access the M57184N-715B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M5718, or try a keyword search, such as Other Signal Circuits
