M57962L-71R-02 - POWEREX

Description: Low-Side Gate Driver IC Non-Inverting Module 15V,5A -20°C ~ 60°C,14-SIP Module, 12 Leads,Through Hole

Download M57962L-71R-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

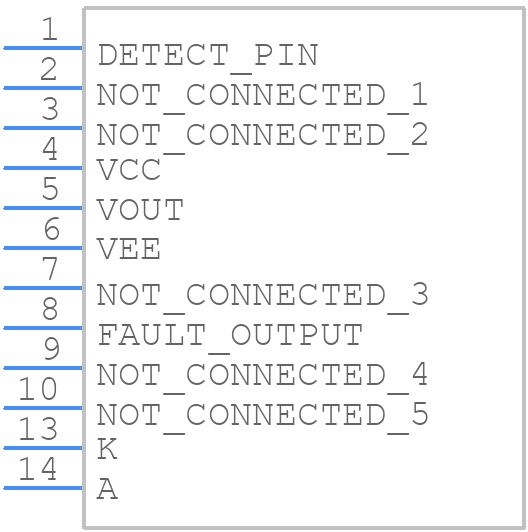

M57962L-71R-02 - POWEREX - PCB symbol
click to zoom
PCB Footprints

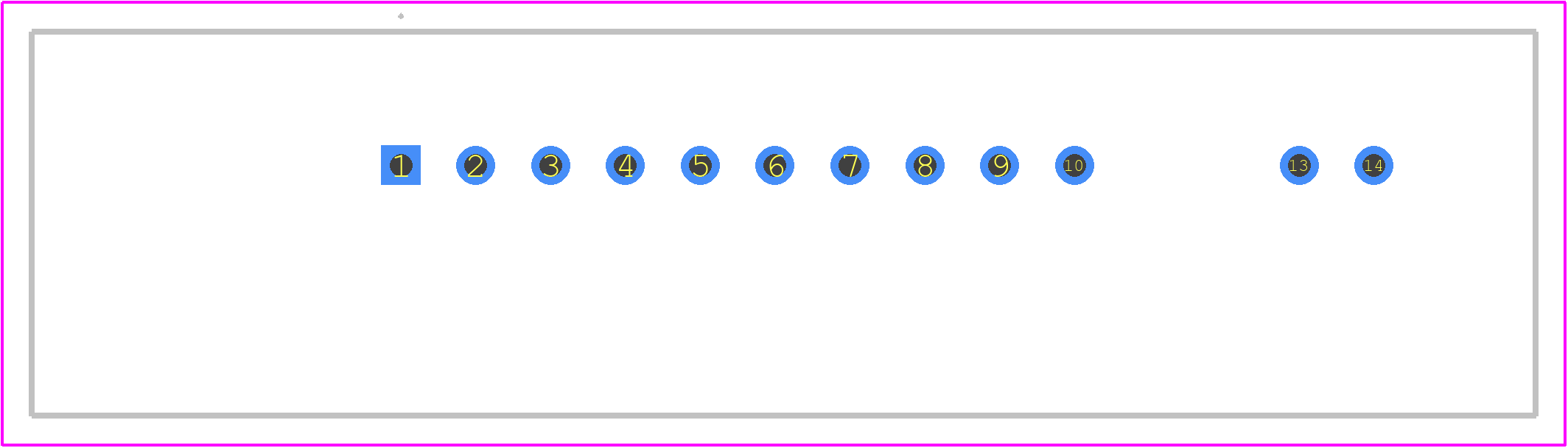

M57962L-71R-02 - POWEREX PCB footprint - Other - Other - 14-SIP_2026
click to zoom
3D Models
M57962L-71R-02 - POWEREX - 3D model - Other - 14-SIP_2026
click to zoom

M57962L-71R-02 Details

  • Manufacturer Part Number:

    M57962L-71R-02

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Powerex Power Semiconductors

  • YTEOL:

    7

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

M57962L-71R-02 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the M57962L-71R-02 is -40°C to 150°C.
  • The recommended storage temperature range for the M57962L-71R-02 is -40°C to 30°C.
  • The maximum power dissipation for the M57962L-71R-02 is 125W.
  • The thermal resistance from junction to case (RθJC) for the M57962L-71R-02 is 1.5°C/W.
  • The recommended soldering temperature and time for the M57962L-71R-02 is 260°C for 10 seconds.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M57962L-71R-02 Overview

Use the download button to access the M57962L-71R-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M5796, or try a keyword search, such as MOSFET Drivers
