M57962L - POWEREX

Description: POWEREX - M57962L - IC, IGBT DRIVER IGBT

Download M57962L Model

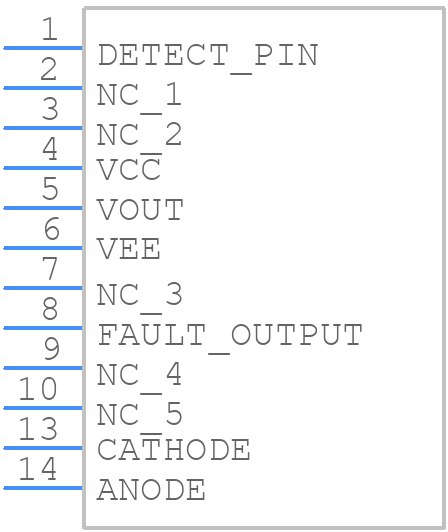

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

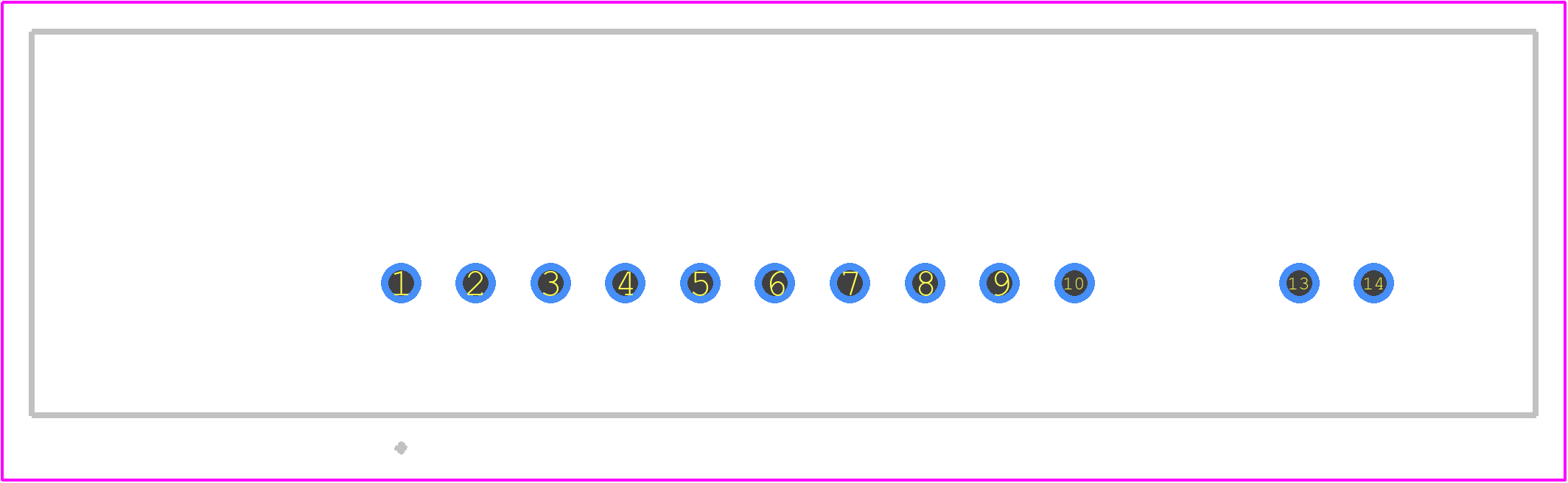

M57962L - POWEREX PCB footprint - Other - Other - M57962L-1
click to zoom
3D Models
M57962L - POWEREX  - 3D model - Other - M57962L-1
click to zoom

M57962L Details

  • Manufacturer Part Number:

    M57962L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1993-07-30

  • Manufacturer:

    Powerex Power Semiconductors

  • YTEOL:

    0

  • Built-in Protections:

    OVER CURRENT

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PSIP-T12

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Min:

    14 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    1.5 µs

  • Turn-on Time:

    1.5 µs

M57962L Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the M57962L is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of 1.5°C/W or less, and ensuring good airflow around the device.
  • The recommended gate resistance for the M57962L is 10 ohms or less to ensure proper switching performance.
  • Yes, the M57962L can be used in a parallel configuration, but it is recommended to use a current sharing technique to ensure equal current distribution among the devices.
  • The maximum allowable voltage transient for the M57962L is 1.5 times the maximum rated voltage, but it is recommended to limit transients to 1.2 times the maximum rated voltage to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M57962L Overview

Use the download button to access the M57962L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M5796, or try a keyword search, such as Other Signal Circuits
