M61532FP - Renesas Electronics

M61532FP Details

• Manufacturer Part Number:

  M61532FP

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  QFP

• Package Description:

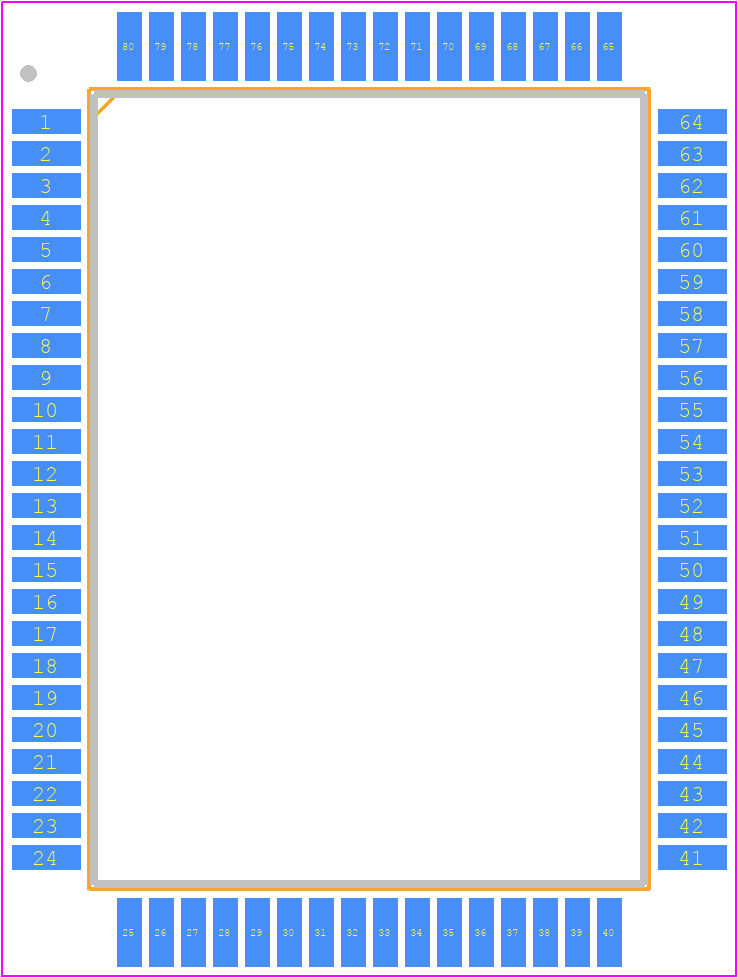

  20 X 14 MM, 0.80 MM PITCH, PLASTIC, QFP-80

• Pin Count:

  80

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• Additional Feature:

  IT ALSO REQUIRES 2.7V TO 5.5V SUPPLY

• Channel Separation:

  90 dB

• Consumer IC Type:

  VOLUME CONTROL CIRCUIT

• Harmonic Distortion:

  0.03%

• JESD-30 Code:

  R-PQFP-G80

• Length:

  20 mm

• Number of Channels:

  8

• Number of Functions:

  1

• Number of Terminals:

  80

• Operating Temperature-Max:

  55 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP80,.7X.9,32

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.05 mm

• Supply Voltage-Max (Vsup):

  7.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Surface Mount:

  YES

• Temperature Grade:

  OTHER

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  14 mm
