M62363FP#DF0G - Renesas Electronics

Description: Renesas Electronics M62363FP#DF0G, Peripheral Driver Octal, 24-Pin, SOP

Download M62363FP#DF0G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

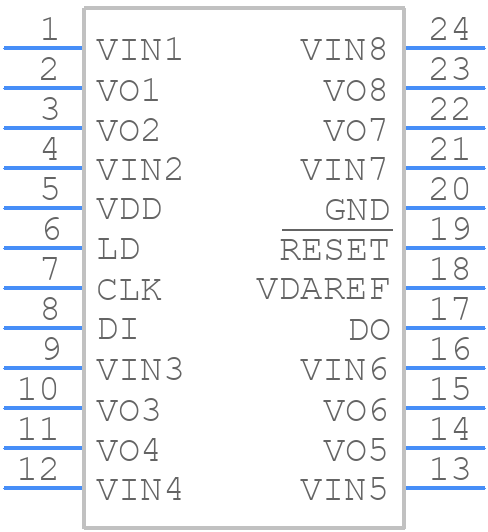

M62363FP#DF0G - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
M62363FP#DF0G - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PRSP0024GA-A
click to zoom
3D Models
M62363FP#DF0G - Renesas Electronics - 3D model - Small Outline Packages - PRSP0024GA-A
click to zoom

M62363FP#DF0G Details

  • Manufacturer Part Number:

    M62363FP#DF0G

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-24

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    10.1 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP24,.3,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2.1 mm

  • Settling Time-Max:

    5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

M62363FP#DF0G Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the M62363FP#DF0G is -40°C to +85°C.
  • The M62363FP#DF0G has a built-in POR and BOR circuit. The POR is triggered when the power supply voltage falls below the POR threshold, and the BOR is triggered when the power supply voltage falls below the BOR threshold. You can use external resistors and capacitors to adjust the POR and BOR thresholds according to your application requirements.
  • The M62363FP#DF0G supports a maximum clock frequency of 20 MHz.
  • The M62363FP#DF0G has a built-in UART interface that can be configured using the UART control registers. You need to set the baud rate, data bits, stop bits, and parity bits according to your application requirements. You can also use the UART interrupt to handle data transmission and reception.
  • Yes, the M62363FP#DF0G has several low-power modes, including idle mode, sleep mode, and stop mode. You can use these modes to reduce power consumption and extend battery life in your application.
