M62364FP#DF1G - Renesas Electronics

Description: Renesas Electronics M62364FP#DF1G, Peripheral Driver Octal, 2.7 → 5.5 V, 24-Pin, SOP

Download M62364FP#DF1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

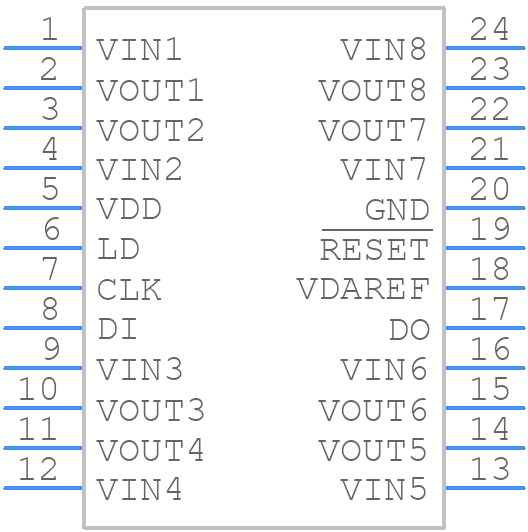

M62364FP#DF1G - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
M62364FP#DF1G - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PRSP0024GA-A_1
click to zoom
3D Models
M62364FP#DF1G - Renesas Electronics - 3D model - Small Outline Packages - PRSP0024GA-A_1
click to zoom

M62364FP#DF1G Details

  • Manufacturer Part Number:

    M62364FP#DF1G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    8-bit 8ch Multiplying D/A Converter with Buffer Amplifiers

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • JESD-30 Code:

    R-PDSO-G24

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP24,.3,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

M62364FP#DF1G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the M62364FP#DF1G is 4.5V to 5.5V, with a typical voltage of 5V.
  • The M62364FP#DF1G can use an external clock source or an internal clock source. To configure the clock source, use the Clock Control Register (CCR) to select the clock source and set the clock frequency.
  • The M62364FP#DF1G supports a maximum clock frequency of 4 MHz.
  • The watchdog timer on the M62364FP#DF1G can be enabled and configured using the Watchdog Timer Control Register (WTCSR). The watchdog timer can be used to reset the microcontroller if it fails to respond within a specified time period.
  • The Low-Voltage Detector (LVD) on the M62364FP#DF1G is used to detect when the voltage supply drops below a certain threshold. When the LVD is triggered, the microcontroller can take action to prevent data corruption or system malfunction.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M62364FP#DF1G Overview

Use the download button to access the M62364FP#DF1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M6236, or try a keyword search, such as Digital to Analog Converters
