M62429FP - Mitsubishi

Description: SERIAL DATA CONTROL DUAL ELECTRO

Download M62429FP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

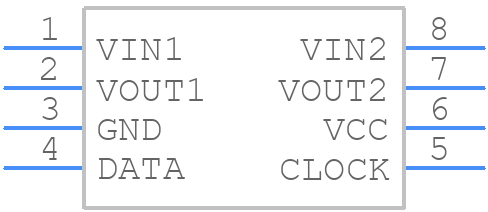

M62429FP - Mitsubishi - PCB symbol
click to zoom
PCB Footprints
M62429FP - Mitsubishi PCB footprint - Small Outline Packages - Small Outline Packages - 8P2S-A
click to zoom
3D Models
M62429FP - Mitsubishi - 3D model - Small Outline Packages - 8P2S-A
click to zoom

M62429FP Details

  • Manufacturer Part Number:

    M62429FP

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    SOIC

  • Package Description:

    4.40 X 5 MM, 1.50 MM HEIGHT, 1.27 MM PITCH, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Mitsubishi Electric

  • Channel Separation:

    80 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • Harmonic Distortion:

    0.01%

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    5 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

M62429FP Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the M62429FP is -40°C to 125°C, with a storage temperature range of -55°C to 150°C.
  • The M62429FP's POR circuit is designed to reset the device when the power supply voltage (VCC) falls below 2.5V. To handle POR, ensure a stable power supply and add an external capacitor (e.g., 10uF) between VCC and GND to filter out noise and voltage drops.
  • The M62429FP supports a maximum clock frequency of 16MHz, but it's recommended to operate at 12MHz or lower to ensure stable operation and minimize power consumption.
  • The WDT can be configured using the WDTCR register. Set the WDT clock source, timeout period, and enable/disable bits according to your application's requirements. Consult the datasheet for detailed register descriptions and configuration examples.
  • The built-in VR is designed to regulate the internal voltage (VINT) to 3.3V, allowing the device to operate from a single external power supply (VCC). This helps reduce the number of external components and simplifies the design.
