M62446AFP - Renesas Electronics

M62446AFP Details

• Manufacturer Part Number:

  M62446AFP

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SSOP

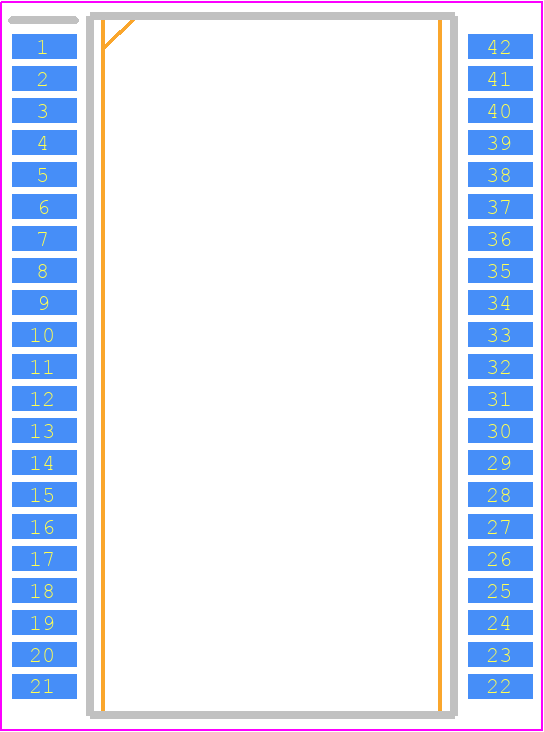

• Package Description:

  0.450 INCH, 0.80 MM PITCH, PLASTIC, SSOP-42

• Pin Count:

  42

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Additional Feature:

  IT ALSO REQUIRES 4.5V TO 5.5V SUPPLY

• Channel Separation:

  80 dB

• Consumer IC Type:

  TONE CONTROL CIRCUIT

• Harmonic Distortion:

  0.002%

• JESD-30 Code:

  R-PDSO-G42

• Length:

  17.5 mm

• Number of Bands:

  2

• Number of Channels:

  6

• Number of Functions:

  1

• Number of Terminals:

  42

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SOP42,.5,32

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.4 mm

• Supply Voltage-Max (Vsup):

  7.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Width:

  8.4 mm
