M66291GP#RB0S - Renesas Electronics

Description: Renesas Electronics M66291GP#RB0S, USB Controller, 12MBps, USB 2.0, 3.3 V, 48-Pin LQFP

Download M66291GP#RB0S Model

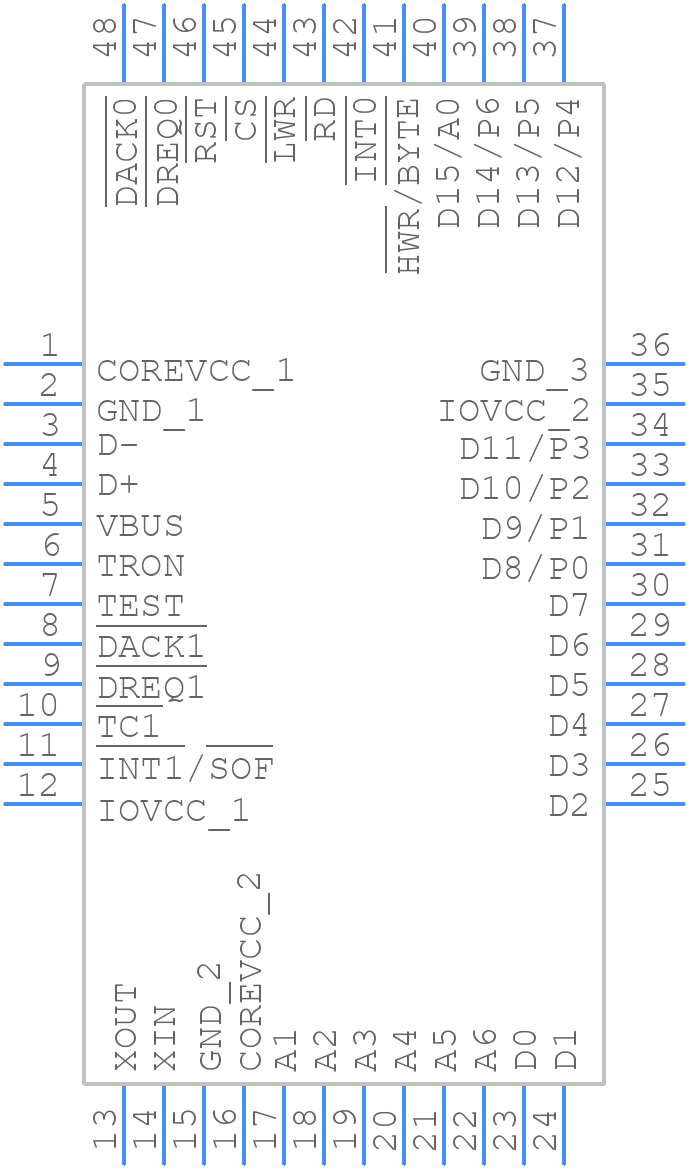

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
M66291GP#RB0S - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP48-P-77-0.50_2021
click to zoom
3D Models
M66291GP#RB0S - Renesas Electronics  - 3D model - Quad Flat Packages - LQFP48-P-77-0.50_2021
click to zoom

M66291GP#RB0S Details

  • Manufacturer Part Number:

    M66291GP#RB0S

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LFQFP

  • Package Description:

    7 X 7 MM, 0.50 MM PITCH, PLASTIC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    PLQP0048KB-A48

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Address Bus Width:

    6

  • Bus Compatibility:

    USB

  • Clock Frequency-Max:

    48 MHz

  • Data Transfer Rate-Max:

    1.5 MBps

  • External Data Bus Width:

    16

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Max:

    3.45 V

  • Supply Voltage-Min:

    3.15 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS
