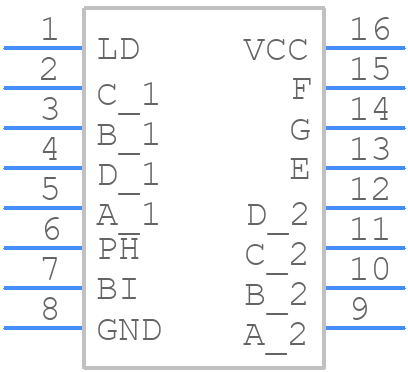

M74HC4543B1R - STMicroelectronics

M74HC4543B1R Details

• Manufacturer Part Number:

  M74HC4543B1R

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-16

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Additional Feature:

  BLANKING INPUT; LCD DISPLAY DRIVER

• Family:

  HC/UH

• Input Conditioning:

  LATCHED

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e4

• Length:

  20 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  SEVEN SEGMENT DECODER/DRIVER

• Max I(ol):

  0.0052 A

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Polarity:

  CONFIGURABLE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Power Supply Current-Max (ICC):

  50 mA

• Prop. Delay@Nom-Sup:

  75 ns

• Propagation Delay (tpd):

  375 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.1 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  4.5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
