Part Image

M74HC573RM13TR - STMicroelectronics

Description: M74HC573RM13TR, Octal D Type Latch Transparent 3 State 2 → 6 V 20-Pin SOP

Download M74HC573RM13TR Model

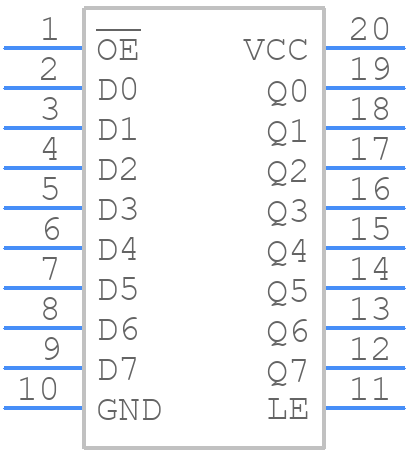

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
M74HC573RM13TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-20_2020
click to zoom
3D Models
M74HC573RM13TR - STMicroelectronics  - 3D model - Small Outline Packages - SO-20_2020
click to zoom

M74HC573RM13TR Details

  • Manufacturer Part Number:

    M74HC573RM13TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-20

  • Pin Count:

    20

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.006 A

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    33 ns

  • Propagation Delay (tpd):

    235 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M74HC573RM13TR Overview

Use the download button to access the M74HC573RM13TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M74HC, or try a keyword search, such as Bus Driver/Transceivers

Parts related to M74HC573RM13TR

Showing 0 results

M74HC573RM13TR Alternates

Showing results

Image Part Number Model
Part Image SN74HC573AQDWRQ1 Texas Instruments

Automotive Catalog Octal Transparent D-Type Latches With 3-State Outputs 20-SOIC -40 to 125

Part Image TC74HC573AFW-TP1 Toshiba America Electronic Components

IC HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver

Part Image 933713560652 Nexperia

Bus Driver, HC/UH Series, 8-Func, 1-Bit, True Output, CMOS, PDSO20

Part Image SN74HC573DWR-00 Texas Instruments

HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20

Part Image MC74HC573DWR2 Motorola Semiconductor Products

Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, SOIC-20

For a full list of alternate parts for M74HC573RM13TR, check out Findchips.com
