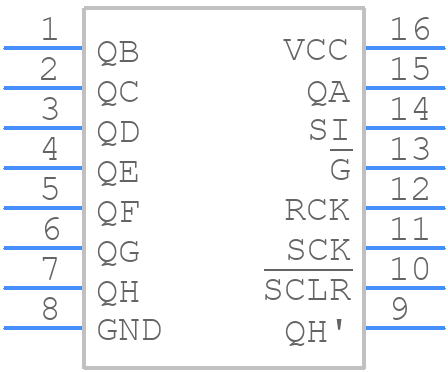

M74HC595RM13TR - STMicroelectronics

M74HC595RM13TR Details

• Manufacturer Part Number:

  M74HC595RM13TR

• Brand Name:

  STMicroelectronics

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  ROHS COMPLIANT, SO-16

• Pin Count:

  16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Additional Feature:

  PARALLEL OUTPUT IS REGISTERED; UNREGISTERED SERIAL SHIFT RIGHT OUTPUT

• Count Direction:

  RIGHT

• Family:

  HC/UH

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  9.9 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  SERIAL IN PARALLEL OUT

• Max Frequency@Nom-Sup:

  4800000 Hz

• Moisture Sensitivity Level:

  3

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  70 mA

• Propagation Delay (tpd):

  190 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  4.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Trigger Type:

  POSITIVE EDGE

• Width:

  3.9 mm

• fmax-Min:

  24 MHz
