M74HCT273B1R - STMicroelectronics

Description: Flip Flop, D-Type Bus Interface, PDIP20

Download M74HCT273B1R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

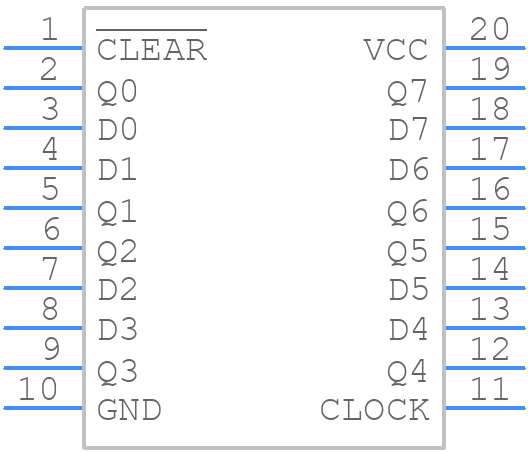

Symbol
M74HCT273B1R - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
M74HCT273B1R - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP20
click to zoom
3D Models
M74HCT273B1R - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP20
click to zoom

M74HCT273B1R Details

  • Manufacturer Part Number:

    M74HCT273B1R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Family:

    HCT

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    25.15 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    20000000 Hz

  • Max I(ol):

    0.004 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Propagation Delay (tpd):

    45 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.93 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.62 mm

  • fmax-Min:

    20 MHz

M74HCT273B1R Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for M74HCT273B1R is 4.5V to 5.5V, as per the datasheet. However, it's recommended to operate it at a stable 5V supply for optimal performance.
  • It's recommended to power up the VCC pin before applying any input signals, and power down the VCC pin after removing all input signals. This ensures that the device is properly initialized and avoids any potential latch-up conditions.
  • The maximum frequency of operation for M74HCT273B1R is typically around 30-40 MHz, depending on the specific application and operating conditions. However, it's recommended to consult the datasheet and perform simulations to determine the maximum frequency for a specific design.
  • It's recommended to use a pull-up or pull-down resistor on the output pins to ensure proper termination and prevent signal reflections. The value of the resistor depends on the specific application and operating conditions, but a typical value is around 1kΩ to 10kΩ.
  • The maximum current that can be sourced or sunk by M74HCT273B1R is typically around 20mA per output pin, as per the datasheet. However, it's recommended to consult the datasheet and perform simulations to determine the maximum current for a specific design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M74HCT273B1R Overview

Use the download button to access the M74HCT273B1R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M74HC, or try a keyword search, such as FF/Latches

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
