M74HCT573M1R - STMicroelectronics

Description: Latches Octal "D" Latch

Download M74HCT573M1R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

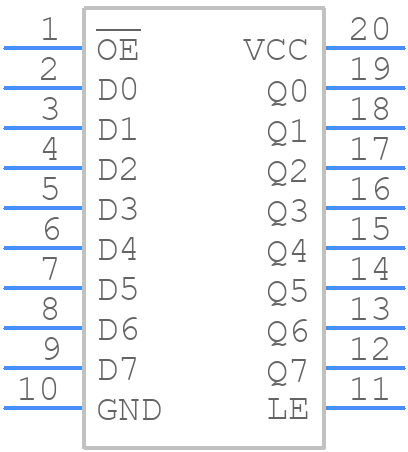

Symbol
M74HCT573M1R - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
M74HCT573M1R - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-20_
click to zoom
3D Models
M74HCT573M1R - STMicroelectronics - 3D model - Small Outline Packages - SO-20_
click to zoom

M74HCT573M1R Details

  • Manufacturer Part Number:

    M74HCT573M1R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    BROADSIDE VERSION OF 373

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    150 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.006 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    70 mA

  • Prop. Delay@Nom-Sup:

    45 ns

  • Propagation Delay (tpd):

    59 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

M74HCT573M1R Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for M74HCT573M1R is 4.5V to 5.5V, as per the datasheet. However, it's recommended to operate it at a stable 5V supply for optimal performance.
  • It's recommended to power up the VCC pin first, followed by the input signals. During power-down, the input signals should be disabled before powering down the VCC pin. This ensures that the device is in a stable state and prevents any unwanted output transitions.
  • The maximum frequency of operation for M74HCT573M1R is typically around 30-40 MHz, depending on the load capacitance and operating conditions. However, it's recommended to consult the datasheet and application notes for specific frequency-related information.
  • To ensure that the output signals are not corrupted during power-up or power-down, it's recommended to use an external pull-up or pull-down resistor on the output pins. This helps to maintain a stable output state during power transitions.
  • While M74HCT573M1R is designed for 5V operation, it can be used in a 3.3V system with some limitations. The device will still function, but the output voltage levels may not be compatible with 3.3V logic. It's recommended to use a level translator or voltage regulator to ensure compatibility.
