M80-4011201 - Harwin

Description: Datamate J-Tek: 6+6 Pos Receptacle DIL Straight 4.7mm THT Connector Slotted Jackscrews, Gold+Tin/Lead

Download M80-4011201 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

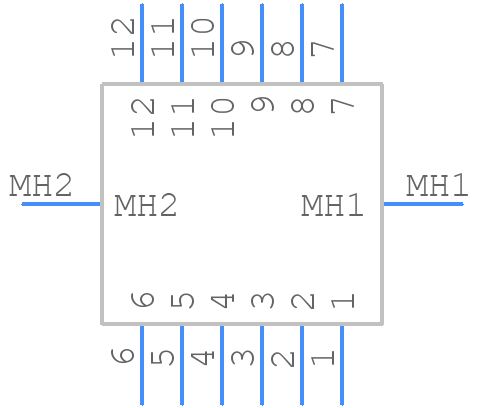

M80-4011201 - Harwin - PCB symbol
click to zoom
PCB Footprints

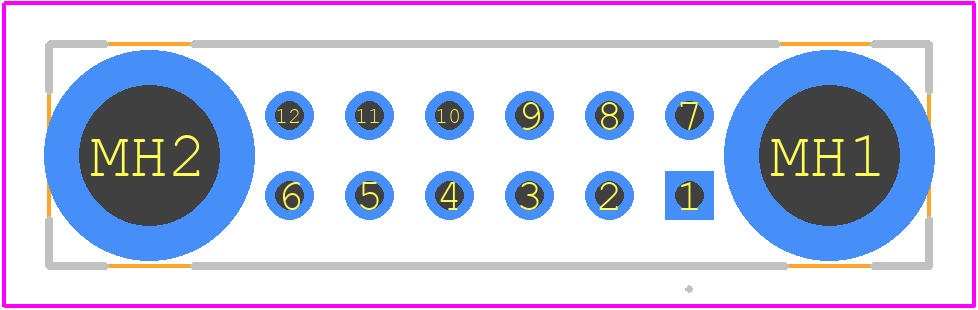

M80-4011201 - Harwin PCB footprint - Other - Other - M80-4011201-1
click to zoom
3D Models
M80-4011201 - Harwin - 3D model - Other - M80-4011201-1
click to zoom

M80-4011201 Details

  • Manufacturer Part Number:

    M80-4011201

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e0

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

M80-4011201 Frequently Asked Questions (FAQs)

  • The recommended torque for the M80-4011201 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environment.
  • Yes, the M80-4011201 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • Yes, the M80-4011201 connector is designed to operate in harsh environments, with a temperature range of -55°C to +125°C and humidity resistance up to 95% RH.
  • The M80-4011201 connector has a mating cycle life of up to 500 cycles, depending on the specific application and environment.
  • Yes, the M80-4011201 connector is part of the Harwin M80 series, which is designed to be compatible with other connectors in the series, allowing for flexibility and customization in design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M80-4011201 Overview

Use the download button to access the M80-4011201 schematic symbol, PCB footprint, and 3D model.
