M80-5000000M1-02-331-00-000 - Harwin

Description: Datamate Mix-Tek: 2 Pos Plug SIL Straight 3.5mm THT Power Connector Jackscrews

Download M80-5000000M1-02-331-00-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M80-5000000M1-02-331-00-000 - Harwin - PCB symbol
click to zoom
PCB Footprints

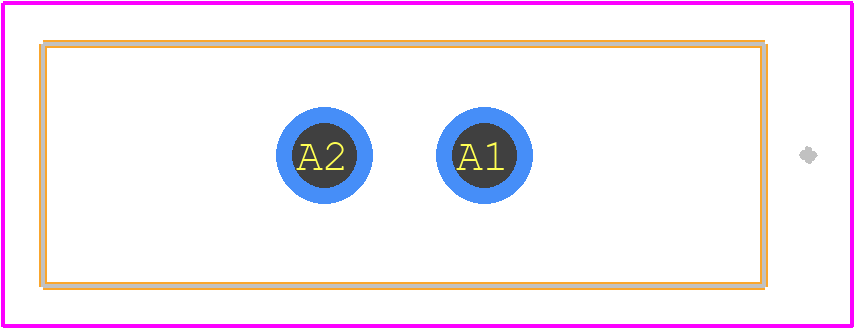

M80-5000000M1-02-331-00-000 - Harwin PCB footprint - Other - Other - M80-5000000M1-02-331-00-000-2
click to zoom
3D Models
M80-5000000M1-02-331-00-000 - Harwin - 3D model - Other - M80-5000000M1-02-331-00-000-2
click to zoom

M80-5000000M1-02-331-00-000 Details

  • Manufacturer Part Number:

    M80-5000000M1-02-331-00-000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Harwin

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER):20A

  • Body Breadth:

    0.217 inch

  • Body Depth:

    0.205 inch

  • Body Length:

    0.079 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BERYLLIUM COPPER

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYPHENYLENE SULFIDE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2

M80-5000000M1-02-331-00-000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the M80-5000000M1-02-331-00-000 is designed to withstand high-vibration environments, but it's recommended to consult with Harwin's application engineers to ensure the connector meets the specific vibration requirements of your application.
  • The M80-5000000M1-02-331-00-000 is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95%. However, it's recommended to consult with Harwin's application engineers to ensure the connector meets the specific environmental requirements of your application.
  • The M80-5000000M1-02-331-00-000 has a mating cycle life of 500 cycles, but this can vary depending on the application and environmental conditions.
  • The M80-5000000M1-02-331-00-000 is designed to be compatible with other Harwin components, but compatibility with components from other manufacturers may vary. It's recommended to consult with Harwin's application engineers to ensure compatibility.
