M80-5103442 - Harwin

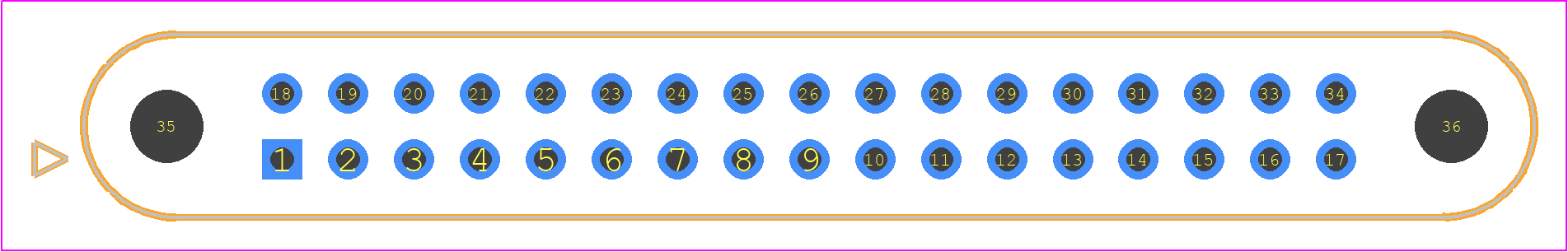

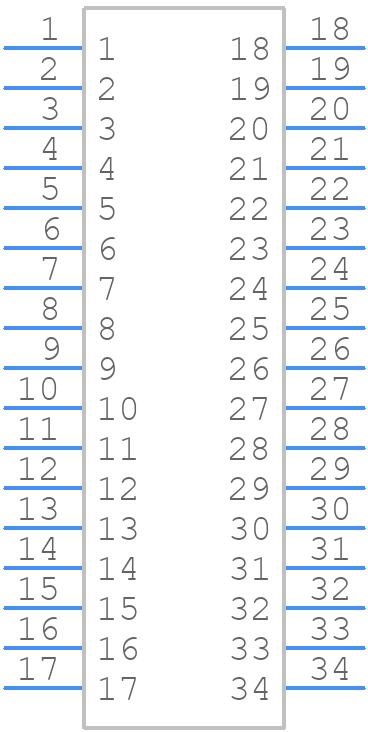

M80-5103442 Details

• Manufacturer Part Number:

  M80-5103442

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  UK

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Harwin

• YTEOL:

  8

• Additional Feature:

  ROHS COMPLIANT

• Board Mounting Option:

  HOLE .086-.098

• Body Breadth:

  0.238 inch

• Body Depth:

  0.22 inch

• Body Length:

  1.732 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  25 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Durability:

  500 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  2.78 N

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYPHENYLENE SULFIDE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.079 inch

• Mating Contact Row Spacing:

  0.079 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  M2X0.4

• Mounting Option 2:

  JACKSCREW

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.0066 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Terminal Length:

  0.13 inch

• Terminal Pitch:

  2 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  34

• UL Flammability Code:

  94V-0
