The recommended torque is 0.5 Nm to 1.5 Nm, as specified in the Harwin datasheet. However, it's essential to consult the specific application requirements and environmental conditions to determine the optimal torque value.
Yes, the M80-5402422 is designed to withstand high-vibration environments. Harwin's datasheet specifies that the connector can operate in environments with vibrations up to 10g, 10-2000 Hz. However, it's crucial to ensure proper mounting and screw torque to maintain the connector's integrity.
The M80-5402422 has an operating temperature range of -40°C to +125°C. However, it's essential to note that the connector's performance and lifespan may be affected by extreme temperatures, so it's recommended to consult the datasheet and application notes for specific guidance.
The M80-5402422 is designed for high-reliability applications and can support high-speed signals up to 10 Gbps. However, the specific signal integrity and transmission requirements should be evaluated to ensure the connector meets the application's needs.
The M80-5402422 has a rugged design and is suitable for use in harsh environments. However, it's essential to consult the datasheet and application notes for specific guidance on environmental conditions, such as humidity, temperature, and chemical exposure. Additionally, proper sealing and protection measures should be implemented to ensure the connector's integrity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M80-5402422 Overview

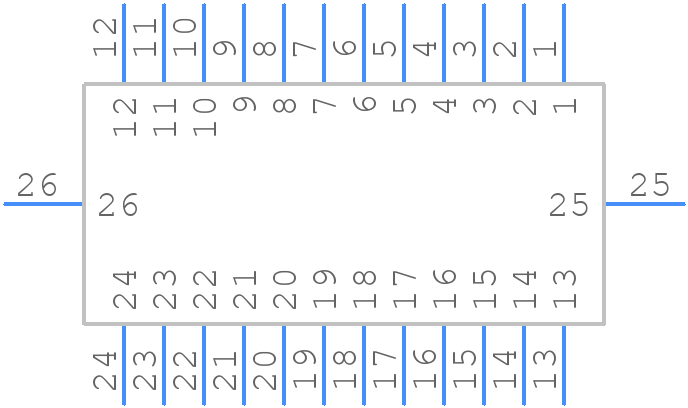

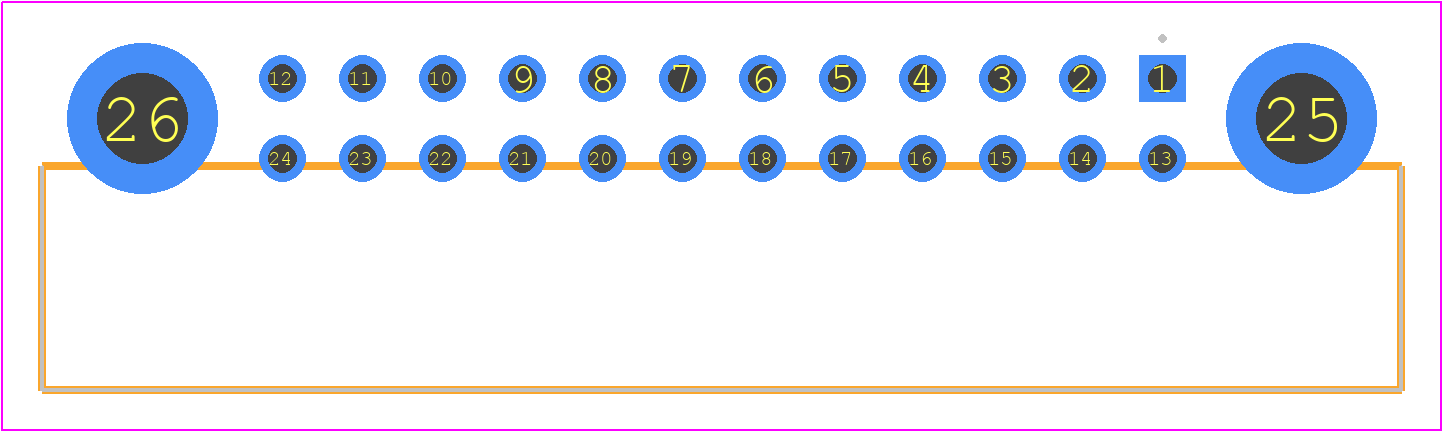

Use the download button to access the M80-5402422 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M80-5,
or try a keyword search, such as Headers and Edge Type Connectors
