M80-7004522 - Harwin

M80-7004522 Details

• Manufacturer Part Number:

  M80-7004522

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

• Country Of Origin:

  UK

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Harwin

• YTEOL:

  6

• Additional Feature:

  PANEL MOUNTABLE

• Board Mounting Option:

  HOLE .138-.163

• Body Breadth:

  0.358 inch

• Body Depth:

  0.244 inch

• Body Length:

  1.697 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  25 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Durability:

  500 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  2.78 N

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e0

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.079 inch

• Mating Contact Row Spacing:

  0.079 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

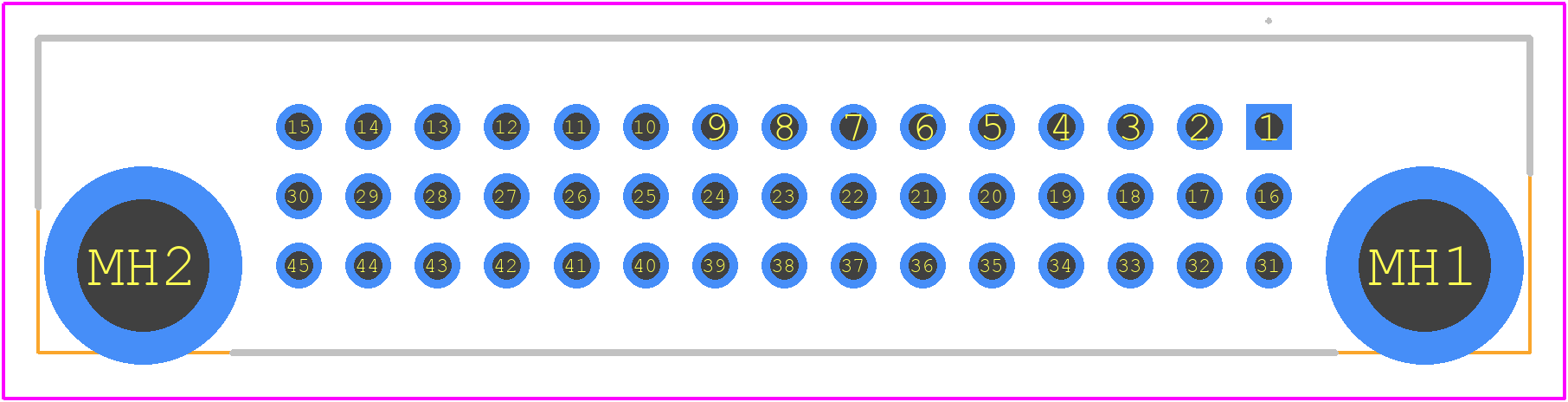

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.0066 mm

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Terminal Length:

  0.118 inch

• Terminal Pitch:

  2 mm

• Termination Type:

  SOLDER

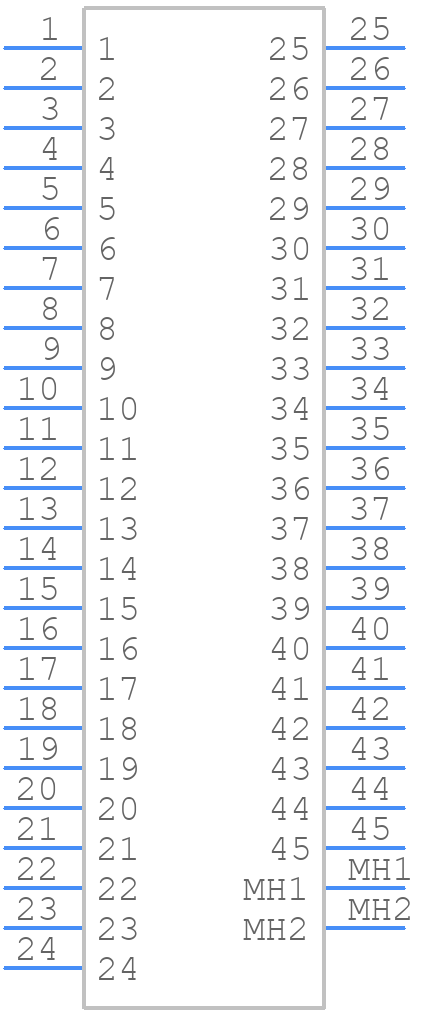

• Total Number of Contacts:

  45

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .199882 N
