M80-MH314M5-08 - Harwin

Description: Datamate Mix-Tek: 8 Pos Plug SIL Right-Angle 4.5mm THT Coax Connector Board Mount

Download M80-MH314M5-08 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

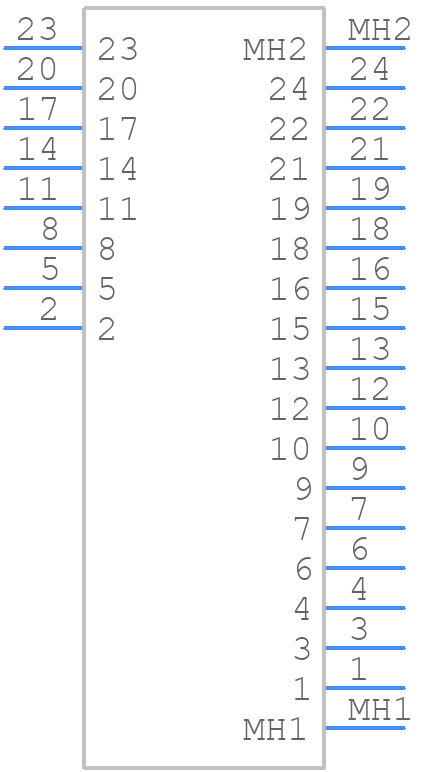

M80-MH314M5-08 - Harwin - PCB symbol
click to zoom
PCB Footprints

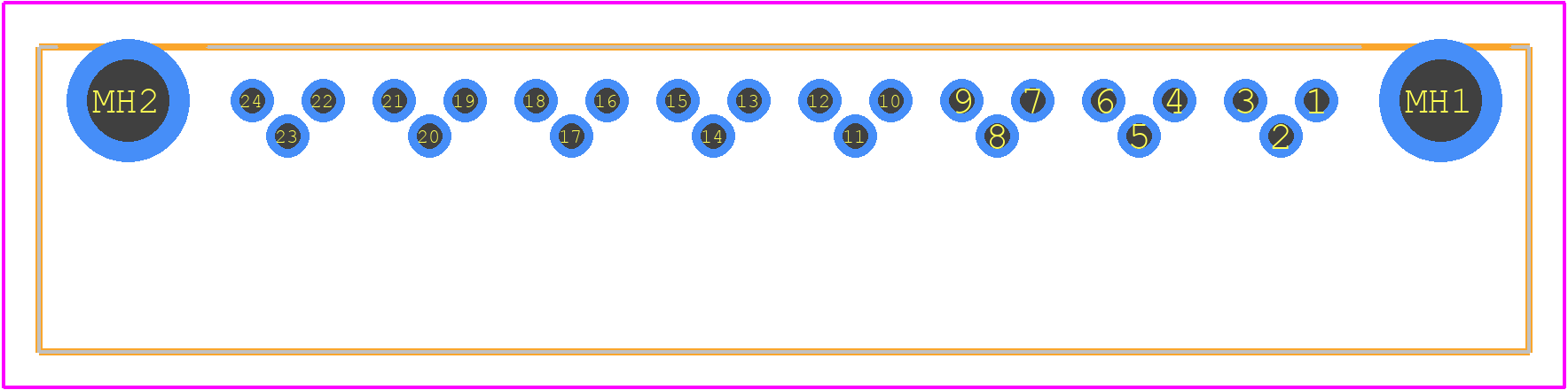

M80-MH314M5-08 - Harwin PCB footprint - Other - Other - M80-MH314M5-08
click to zoom
3D Models
M80-MH314M5-08 - Harwin - 3D model - Other - M80-MH314M5-08
click to zoom

M80-MH314M5-08 Details

  • Manufacturer Part Number:

    M80-MH314M5-08

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Harwin

  • Body Breadth:

    0.238 inch

  • Body Depth:

    0.22 inch

  • Body Length:

    1.654 inch

  • Body/Shell Style:

    PLUG

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF CONNECTOR

  • Contact Arrangement:

    S0C8

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    COAX

  • Coupling Type:

    SNAP

  • Durability:

    500 Cycles

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    GLASS FILLED POLYPHENYLENE SULFIDE

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    GUIDE SLOT

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Frequency-Max:

    6 GHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • VSWR:

    1.29

M80-MH314M5-08 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm (5 in-lbs to 13 in-lbs) according to Harwin's application notes.
  • Yes, the M80-MH314M5-08 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • The connector is rated for temperatures from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow Harwin's guidelines for sealing and potting to ensure reliable performance in harsh environments.
  • The M80-MH314M5-08 is designed for high-speed signal transmission, with a bandwidth of up to 10 Gbps. However, it's crucial to follow proper PCB design and layout guidelines to minimize signal degradation.
  • Yes, Harwin provides guidelines for PCB layout, including recommendations for pad size, spacing, and solder mask clearance. Following these guidelines ensures reliable connection and minimizes the risk of soldering defects.
