M830520 - Kyocera AVX

Description: AVX - M830520 - EMBEDDED CERAMIC ANTENNA, 2.442/5.487GHZ

Download M830520 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

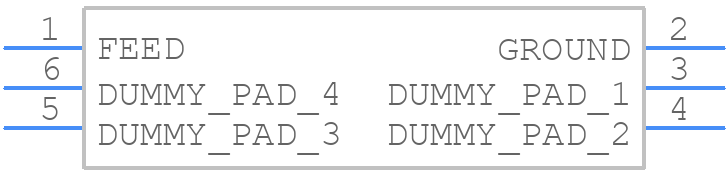

Symbol
M830520 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints
M830520 - Kyocera AVX PCB footprint - Other - Other - M830520-2
click to zoom
3D Models
M830520 - Kyocera AVX - 3D model - Other - M830520-2
click to zoom

M830520 Details

  • Manufacturer Part Number:

    M830520

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6

  • Additional Feature:

    IT CAN ALSO BE OPERATED FROM 5150MHZ TO 5825MHZ

  • Application:

    AGRICULTURE, AUTOMOTIVE, BLUETOOTH, DIGITAL SIGNAGE, HEALTHCARE, SMART HOME, WI-FI, WLAN, ZIGBEE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Omnidirectional:

    NO

  • Operating Frequency-Max:

    2485 MHz

  • Operating Frequency-Min:

    2400 MHz

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    DILCC6,.12,134

  • Polarization:

    LINEAR

  • RF/Microwave Device Type:

    ANTENNA-OTHER

  • Surface Mount:

    YES

  • Transmission Power-Max:

    0.5 W

  • VSWR-Max:

    2.8

M830520 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the M830520 is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • During reflow soldering, the M830520 should be placed on a flat, even surface to prevent warping or deformation. The recommended reflow profile is 260°C peak temperature, with a ramp-up rate of 3°C/s and a dwell time of 30-60 seconds.
  • The maximum operating temperature for the M830520 is 125°C, with a derating of 1.25% per °C above 85°C.
  • Yes, the M830520 is designed to withstand high-vibration environments, with a vibration resistance of 10G peak acceleration, 10-2000Hz frequency range.
  • The M830520 should be stored in a dry, cool place, away from direct sunlight and moisture. It is recommended to store the components in their original packaging or in a dry, nitrogen-filled environment.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M830520 Overview

Use the download button to access the M830520 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M8305, or try a keyword search, such as RF/Microwave Antennas

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
