M83536/1-019M footprint, schematic symbol and 3D model by TE Connectivity

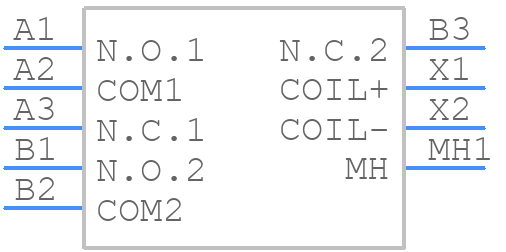

Symbol

click to zoom

PCB Footprints

M83536/1-019M - TE Connectivity PCB footprint - Other - Other - M83536/1-019M-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M83536/1-019M
Part Number M83536/1-019M
Manufacturer TE Connectivity
Pin Count 9
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - M83536/1-019M-2
Released Date Jun 18, 2026
Last Modified Date Jun 18, 2026 1:57 PM UTC
Pinout / Pin List Click Here (Member Only)

M83536/1-019M Details

Manufacturer Part Number:
M83536/1-019M
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.41.00.20
Factory Lead Time:
36 Weeks, 2 Days
Manufacturer:
TE Connectivity
YTEOL:
7
Body Breadth:
10.41 mm
Body Height:
16.26 mm
Body Length or Diameter:
20.57 mm
Coil Current(DC)-Max:
0.064 A
Coil Operate Voltage(DC):
13.5 V
Coil Power:
1792 mW
Coil Release Voltage(DC):
2.3 V
Coil Resistance:
500 Ω
Coil Voltage(DC)-Max:
28 V
Coil Voltage-Nom:
28 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
5A@115VAC
Contact Current(AC)-Max:
5 A
Contact Current(DC)-Max:
5 A
Contact (DC) Max Rating R Load:
5A@28VDC
Contact Voltage(AC)-Max:
115 V
Contact Voltage(DC)-Max:
28 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
End Contact Material:
SILVER CADMIUM OXIDE
Input Switching Control Type:
Random
Insulation Resistance:
100000000 Ω
Mounting Feature:
THROUGH HOLE-STRAIGHT
Number of Terminals:
8
Operate Time:
6 ms
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-70 °C
Physical Dimension:
20.57mm x 10.41mm x 16.26mm
Reference Standard:
MIL-PRF-83536/1
Relay Action:
MOMENTARY
Relay Form:
2 FORM C
Relay Function:
DPDT-CO
Relay Type:
POWER/SIGNAL RELAY
Release Time:
6 ms
Sealing:
HERMETICALLY SEALED
Surface Mount:
NO
Terminal Length:
0.004300228600457201 inch
Termination Type:
SOLDER/QUICK CONNECT

M83536/1-019M Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the M83536/1-019M connector, but it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque values.
Yes, the M83536/1-019M connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
Yes, the M83536/1-019M connector is designed to operate in harsh environments, including high temperatures (up to 200°C) and high humidity. However, it's essential to consult the datasheet and TE Connectivity's documentation for specific environmental ratings and limitations.
Yes, the M83536/1-019M connector is designed to be compatible with other TE Connectivity products and systems, including their circular connectors, cable assemblies, and other interconnect solutions.
The typical lead time for delivery of the M83536/1-019M connector varies depending on the region, quantity, and availability. It's best to consult with TE Connectivity's sales representatives or authorized distributors for the most up-to-date lead time information.

Trust Checks

Community Provided

System Verified

Community Approved

M83536/1-019M Overview

Use the download button to access the M83536/1-019M schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M8353, or try a keyword search, such as Power/Signal Relays
