M83536/2-028M - TE Connectivity

Description: General Purpose Relays RELAY DPDT 5A 48VDC HERM

Download M83536/2-028M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

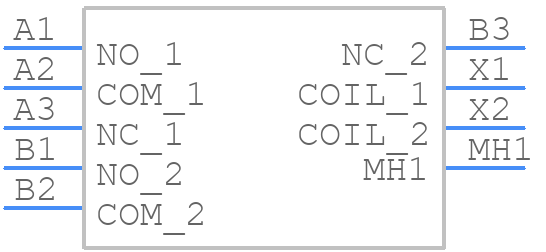

Symbol
M83536/2-028M - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
M83536/2-028M - TE Connectivity PCB footprint - Other - Other - M83536/2-028M-2
click to zoom
3D Models
M83536/2-028M - TE Connectivity - 3D model - Other - M83536/2-028M-2
click to zoom

M83536/2-028M Details

  • Manufacturer Part Number:

    M83536/2-028M

  • Brand Name:

    CII

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    36 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    POLARIZED

  • Body Breadth:

    10.41 mm

  • Body Height:

    16.26 mm

  • Body Length or Diameter:

    20.57 mm

  • Coil Current(DC)-Max:

    0.056 A

  • Coil Power:

    1568 mW

  • Coil Resistance:

    500 Ω

  • Coil Voltage(DC)-Max:

    28 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • End Contact Material:

    SILVER CADMIUM OXIDE

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SOCKET MOUNT

  • Operate Time:

    6 ms

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -70 °C

  • Physical Dimension:

    20.57mm x 10.41mm x 16.26mm

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT-CO

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    5.1 ms

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER/QUICK CONNECT

M83536/2-028M Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the M83536/2-028M connector, but it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque values.
  • Yes, the M83536/2-028M connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
  • Yes, the M83536/2-028M connector is designed to operate in harsh environments, including high temperatures (up to 200°C) and high humidity. However, it's essential to consult the datasheet and TE Connectivity's documentation for specific environmental ratings and limitations.
  • The M83536/2-028M connector has a mating cycle life of at least 500 cycles, but this may vary depending on the specific application and environmental conditions.
  • Yes, the M83536/2-028M connector is designed to be compatible with other TE Connectivity products and systems, including their circular connectors and cable assemblies. However, it's essential to consult TE Connectivity's documentation and technical support for specific compatibility information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M83536/2-028M Overview

Use the download button to access the M83536/2-028M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M8353, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
