M83536/22-022M footprint, schematic symbol and 3D model by TE Connectivity

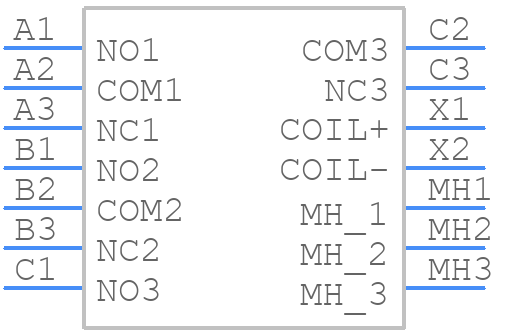

Symbol

click to zoom

PCB Footprints

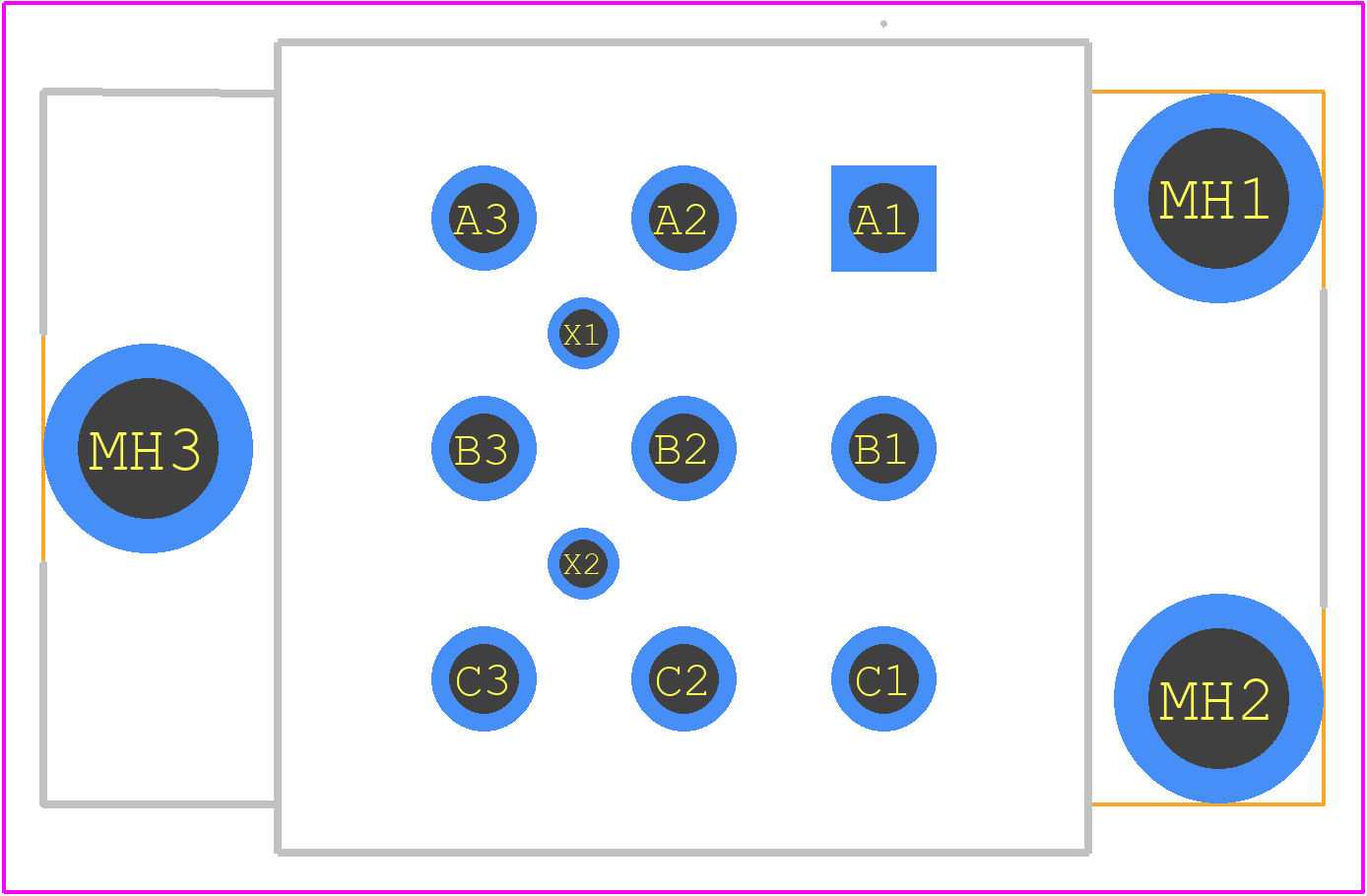

M83536/22-022M - TE Connectivity PCB footprint - Other - Other - M83536/22-022M-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M83536/22-022M
Part Number M83536/22-022M
Manufacturer TE Connectivity
Pin Count 14
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - M83536/22-022M-2
Released Date Aug 26, 2025
Last Modified Date Dec 4, 2025 3:46 AM UTC
Pinout / Pin List Click Here (Member Only)

M83536/22-022M Details

Manufacturer Part Number:
M83536/22-022M
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.41.00.20
Manufacturer:
TE Connectivity
YTEOL:
7
Additional Feature:
PANEL MOUNTABLE
Body Breadth:
20.57 mm
Body Height:
16.26 mm
Body Length or Diameter:
20.57 mm
Coil Current(DC)-Max:
0.07 A
Coil Operate Voltage(DC):
18 V
Coil Power:
1960 mW
Coil Release Voltage(DC):
1.5 V
Coil Resistance:
400 Ω
Coil Voltage(DC)-Max:
28 V
Coil Voltage-Nom:
28 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
10A@200VAC
Contact Current(AC)-Max:
10 A
Contact Current(DC)-Max:
10 A
Contact (DC) Max Rating R Load:
10A@28VDC
Contact Voltage(AC)-Max:
200 V
Contact Voltage(DC)-Max:
28 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
50000 Cycle(s)
Input Switching Control Type:
Random
Insulation Resistance:
50000000 Ω
JESD-609 Code:
e4
Mounting Feature:
THROUGH HOLE-STRAIGHT
Number of Terminals:
11
Operate Time:
7 ms
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-70 °C
Physical Dimension:
20.57mm x 20.57mm x 16.26mm
Reference Standard:
MIL-PRF-83536
Relay Action:
MOMENTARY
Relay Form:
3 FORM C
Relay Function:
3PDT
Relay Type:
POWER/SIGNAL RELAY
Release Time:
7 ms
Sealing:
HERMETICALLY SEALED
Surface Mount:
NO
Terminal Finish:
GOLD
Termination Type:
SOLDER

M83536/22-022M Frequently Asked Questions (FAQs)

The recommended torque value is 10-15 in-lbs (1.1-1.7 Nm) for the M83536/22-022M connector, but it's always best to consult the specific application requirements and TE Connectivity's documentation for precise guidance.
Yes, the M83536/22-022M connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific application requirements.
The M83536/22-022M connector is designed to operate in a wide range of temperatures (-55°C to 125°C) and can withstand humid environments. However, it's crucial to consult TE Connectivity's documentation and perform environmental testing to ensure the connector meets the specific application requirements.
The M83536/22-022M connector has a mating cycle life of 500 cycles minimum, but this can vary depending on the specific application and environmental conditions. It's recommended to consult TE Connectivity's documentation and perform testing to determine the connector's performance in the specific use case.
Yes, the M83536/22-022M connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in applications that require these environmental and safety standards.

Trust Checks

Community Provided

System Verified

Community Approved

M83536/22-022M Overview

Use the download button to access the M83536/22-022M schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M8353, or try a keyword search, such as Power/Signal Relays
