M8AS-06PMMR-SF8001 - Amphenol

Description: 6 Position Circular Connector Receptacle, Male Pins Solder

Download M8AS-06PMMR-SF8001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M8AS-06PMMR-SF8001 - Amphenol - PCB symbol
click to zoom
PCB Footprints

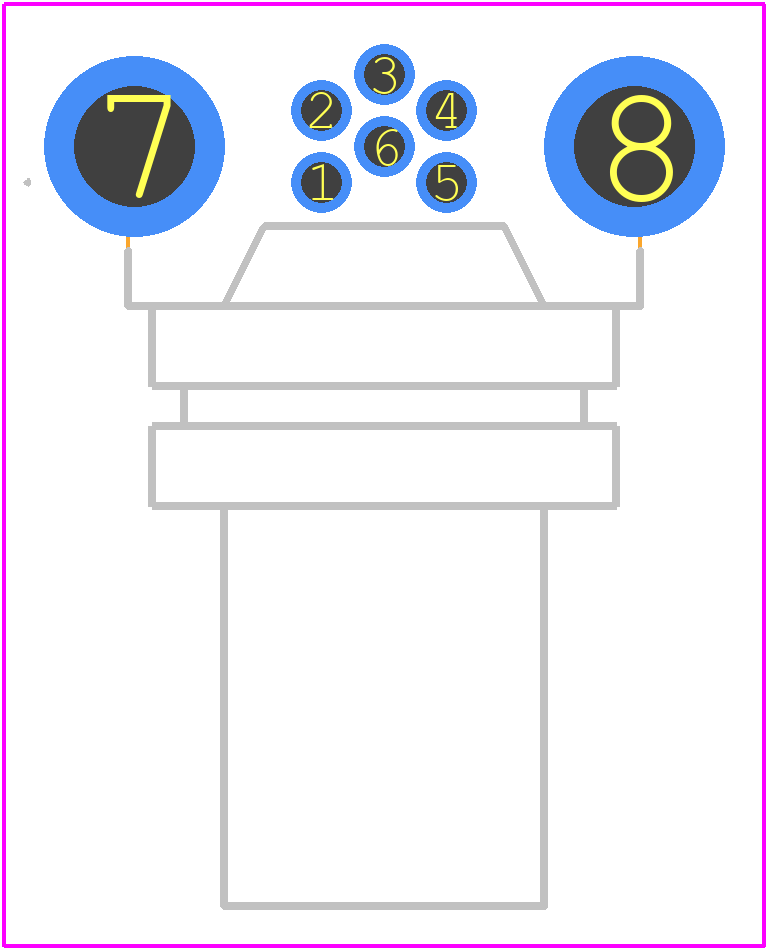

M8AS-06PMMR-SF8001 - Amphenol PCB footprint - Other - Other - M8AS-06PMMR-SF8001-9
click to zoom
3D Models
M8AS-06PMMR-SF8001 - Amphenol - 3D model - Other - M8AS-06PMMR-SF8001-9
click to zoom

M8AS-06PMMR-SF8001 Details

  • Manufacturer Part Number:

    M8AS-06PMMR-SF8001

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT: 28A; RATED VOLTAGE: 30V

  • Backshell Type:

    SOLID

  • Body Depth:

    0.646 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Gender:

    MALE

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    WATERPROOF

  • Reference Standard:

    IEC

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER ALLOY/ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

M8AS-06PMMR-SF8001 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) for the M8AS-06PMMR-SF8001 connector, as specified by Amphenol Corporation.
  • Yes, the M8AS-06PMMR-SF8001 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, robotics, and transportation systems.
  • Yes, the M8AS-06PMMR-SF8001 connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C (-40°F to 257°F) and humidity up to 95% RH. However, it's essential to follow proper installation and sealing procedures to ensure reliable performance.
  • The M8AS-06PMMR-SF8001 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent connections and disconnections.
  • The M8AS-06PMMR-SF8001 connector is designed to be compatible with other M8 connectors that meet the IEC 61076-2-101 standard. However, it's recommended to verify compatibility with the specific connector model and manufacturer to ensure reliable performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M8AS-06PMMR-SF8001 Overview

Use the download button to access the M8AS-06PMMR-SF8001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M8AS-, or try a keyword search, such as Other Circular Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
