M8S-03PFFR-SF8001 - Amphenol

Description: Amphenol M8S Series M8 Panel Mount Circular Connector, 3 Pole Socket 60VAC/DC 4A -40°C ~ 105°C

Download M8S-03PFFR-SF8001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M8S-03PFFR-SF8001 - Amphenol - PCB symbol
click to zoom
PCB Footprints

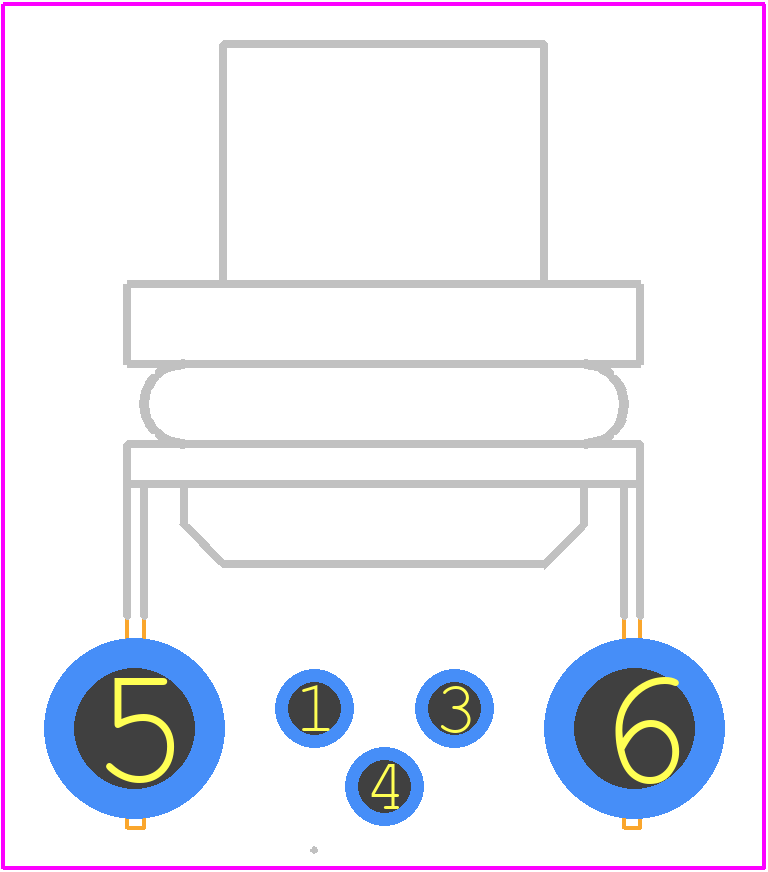

M8S-03PFFR-SF8001 - Amphenol PCB footprint - Other - Other - M8S-03PFFR-SF8001-6
click to zoom
3D Models
M8S-03PFFR-SF8001 - Amphenol - 3D model - Other - M8S-03PFFR-SF8001-6
click to zoom

M8S-03PFFR-SF8001 Details

  • Manufacturer Part Number:

    M8S-03PFFR-SF8001

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    CIRCULAR CONNECTOR

M8S-03PFFR-SF8001 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) for the M8 thread.
  • Yes, the connector is designed for harsh environments and can withstand outdoor use, including exposure to water, dust, and extreme temperatures.
  • The connector can operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F).
  • Yes, the M8S-03PFFR-SF8001 connector is compatible with other M8 connectors that meet the IEC 61076-2-101 standard.
  • The connector has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.
