M8S-04PMMR-SF8001 - Amphenol

Description: 4 Position Circular Connector Plug, Male Pins Solder , 3A , 30VAC/DC , -40°C ~ 105°C

Download M8S-04PMMR-SF8001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M8S-04PMMR-SF8001 - Amphenol - PCB symbol
click to zoom
PCB Footprints

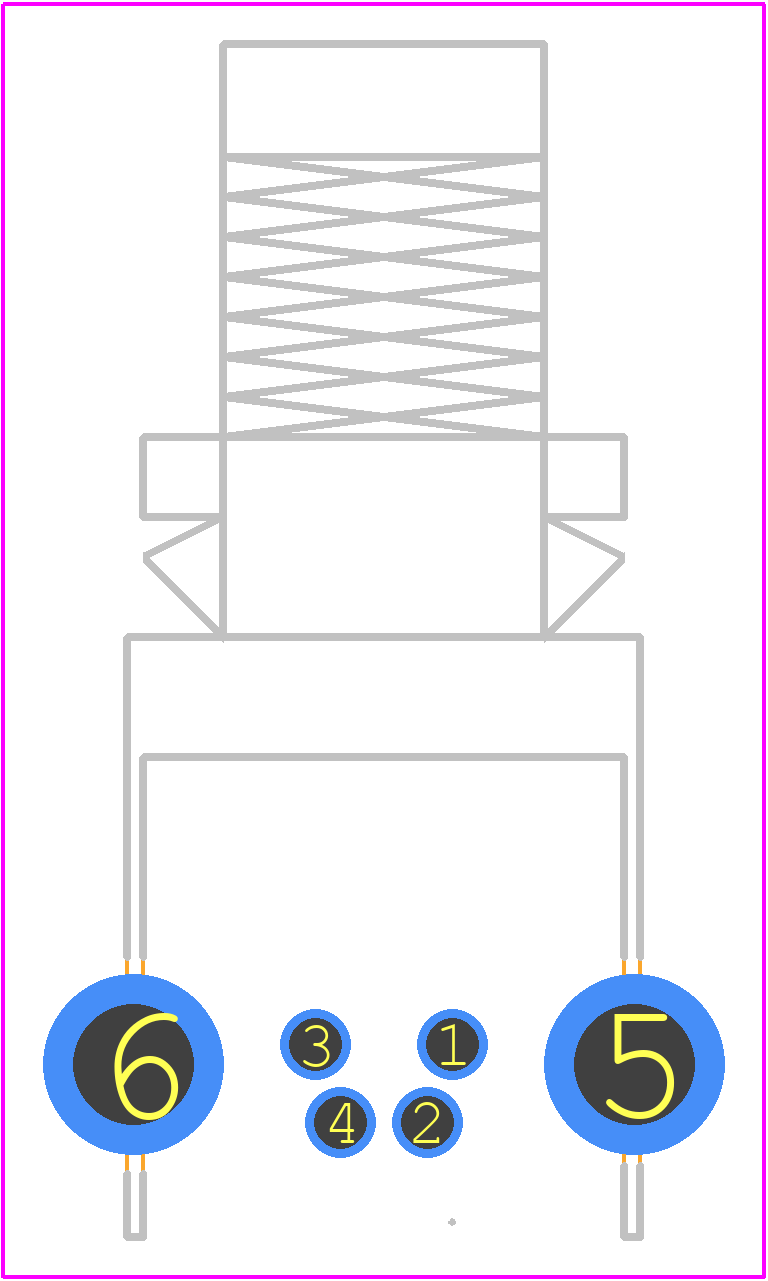

M8S-04PMMR-SF8001 - Amphenol PCB footprint - Other - Other - M8S-04PMMR-SF8001-7
click to zoom
3D Models
M8S-04PMMR-SF8001 - Amphenol - 3D model - Other - M8S-04PMMR-SF8001-7
click to zoom

M8S-04PMMR-SF8001 Details

  • Manufacturer Part Number:

    M8S-04PMMR-SF8001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.78

  • Additional Feature:

    IP68

  • Backshell Type:

    SOLID

  • Body Depth:

    0.669 inch

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Gender:

    MALE

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    WATERPROOF

  • Shell Finish:

    NICKEL

  • Shell Material:

    METAL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

M8S-04PMMR-SF8001 Frequently Asked Questions (FAQs)

  • The recommended torque for the M8S-04PMMR-SF8001 connector is 0.6 Nm to 1.2 Nm (5-10 in-lbs).
  • Yes, the M8S-04PMMR-SF8001 connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
  • The operating temperature range of the M8S-04PMMR-SF8001 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the M8S-04PMMR-SF8001 connector is compatible with other M8 connectors that meet the IEC 61076-2-111 standard.
  • The mating cycle life of the M8S-04PMMR-SF8001 connector is 500 cycles.
