The recommended operating temperature range for the M95040-DRMF3TG/K is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, from -55°C to 150°C.
The M95040-DRMF3TG/K has an internal POR and BOR circuitry. To handle these features, ensure that the power supply ramps up slowly (typically <10 ms) to avoid false resets. Also, use an external capacitor (e.g., 10 nF) between the VCC pin and GND to filter out noise and prevent unwanted resets.
The M95040-DRMF3TG/K can operate at a maximum clock frequency of 40 MHz. However, the actual clock frequency may be limited by the specific application, PCB design, and environmental conditions. It's essential to consult the datasheet and application notes for more information.
To implement a reliable and efficient power-down mode, use the device's built-in power-down modes (e.g., STOP, STANDBY, and HIBERNATE). Ensure that all peripherals are disabled, and the clock is stopped before entering power-down mode. Also, consider using an external power switch or a low-dropout regulator (LDO) to minimize power consumption.
When designing a PCB with the M95040-DRMF3TG/K, consider the following: use a 4-layer PCB with a solid ground plane, keep signal traces short and away from noise sources, use decoupling capacitors (e.g., 100 nF) near the VCC pin, and ensure that the device is placed in a thermally efficient location to dissipate heat.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M95040-DRMF3TG/K Overview

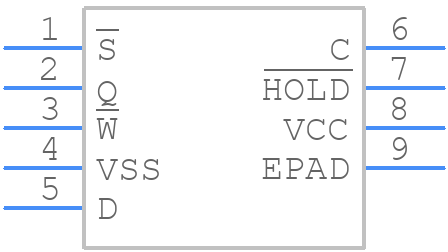

Use the download button to access the M95040-DRMF3TG/K schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like M9504,
or try a keyword search, such as EEPROMs
