M95080-DFMC6TG - STMicroelectronics

Description: 8-Kbit serial SPI bus EEPROM with high-speed clock

Download M95080-DFMC6TG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

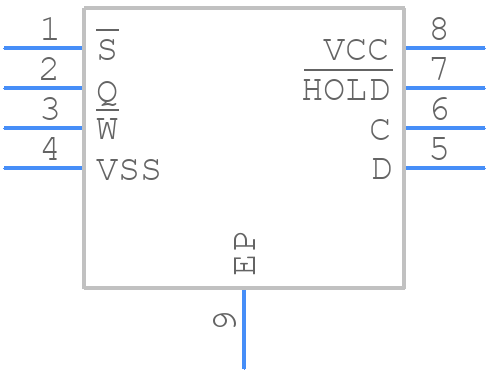

Symbol
M95080-DFMC6TG - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
M95080-DFMC6TG - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - . UFDFPN8 (MLP8) – 8-lead ultra thin fine pitch dual flat package no lead 2 x 3 mm, data-
click to zoom
3D Models
M95080-DFMC6TG - STMicroelectronics - 3D model - Small Outline No-lead - . UFDFPN8 (MLP8) – 8-lead ultra thin fine pitch dual flat package no lead 2 x 3 mm, data-
click to zoom

M95080-DFMC6TG Details

  • Manufacturer Part Number:

    M95080-DFMC6TG

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UFDFP-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Clock Frequency-Max (fCLK):

    5 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Memory Density:

    8192 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    1024 words

  • Number of Words Code:

    1000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.6 mm

  • Serial Bus Type:

    SPI

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2 mm

  • Write Cycle Time-Max (tWC):

    5 ms

M95080-DFMC6TG Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the M95080-DFMC6TG is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
  • To ensure proper power supply, connect the VCC pin to a stable 3.3V or 1.8V power source, depending on the device's configuration. Also, make sure to decouple the power supply with a 10nF capacitor to reduce noise and ensure reliable operation.
  • The M95080-DFMC6TG supports a maximum clock frequency of 104 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the system design and the quality of the clock signal.
  • The M95080-DFMC6TG can be configured for different memory densities by setting the appropriate values for the address pins (A0-A24) and the chip select pins (CS). Refer to the datasheet for specific configuration details and timing diagrams.
  • The typical power consumption of the M95080-DFMC6TG varies depending on the operating frequency, voltage, and mode of operation. According to the datasheet, the typical active power consumption is around 30mA at 104MHz and 3.3V, while the standby power consumption is around 10μA.
