- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for M9K103-400L
- Part Number M9K103-400L
- Manufacturer Rosenberger
- Pin Count 17
- Part Category Connector
- Package Category Other
- Footprint Name Other - M9K103-400L-1
- Released Date Dec 6, 2019
- Last Modified Date Jun 8, 2025 11:05 AM UTC
- Pinout / Pin List Click Here (Member Only)
M9K103-400L Details
-
Manufacturer Part Number:
M9K103-400L
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Rosenberger
-
Connector Type:
BOARD CONNECTOR
-
Contact Finish Mating:
NOT APPLICABLE
-
Contact Material:
NOT APPLICABLE
M9K103-400L Frequently Asked Questions (FAQs)
-
The recommended torque value for the M9K103-400L connector is 0.4 Nm to 0.6 Nm (3.5 in-lbs to 5.3 in-lbs) for the screw locking mechanism.
-
Yes, the M9K103-400L connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, aerospace, and industrial systems.
-
Yes, the M9K103-400L connector is designed to operate in harsh environments, with a temperature range of -40°C to +125°C (-40°F to +257°F) and humidity up to 95% RH.
-
The M9K103-400L connector has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
-
Yes, the M9K103-400L connector is part of the Rosenberger M9K series, which is designed to be compatible with other connectors in the series, allowing for flexibility in design and assembly.
Trust Checks
Expert Contribution
System Verified
Community Approved
M9K103-400L Overview

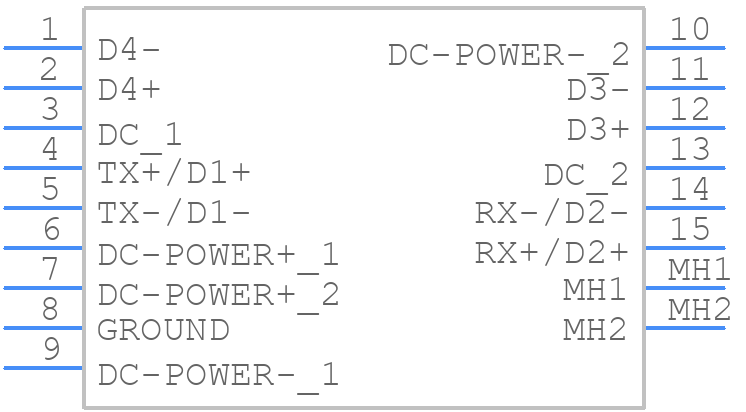

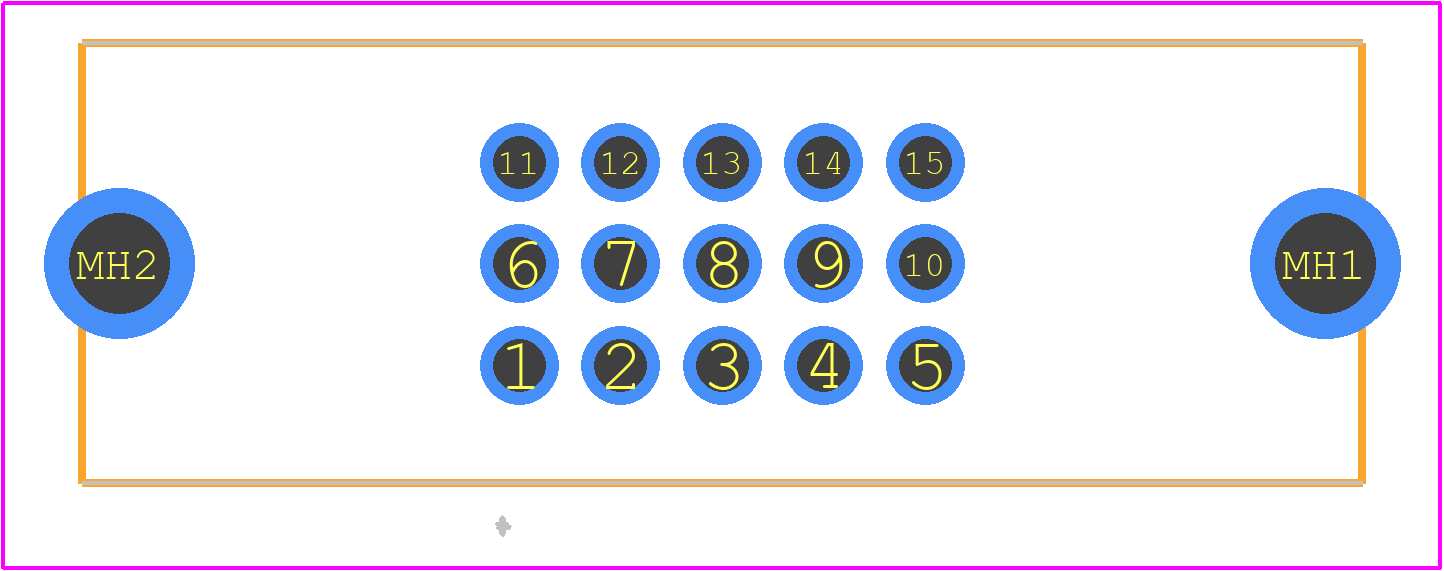

Use the download button to access the M9K103-400L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M9K10,
or try a keyword search, such as Headers and Edge Type Connectors
