MA-102-55E footprint, schematic symbol and 3D model by Ohmite

Symbol

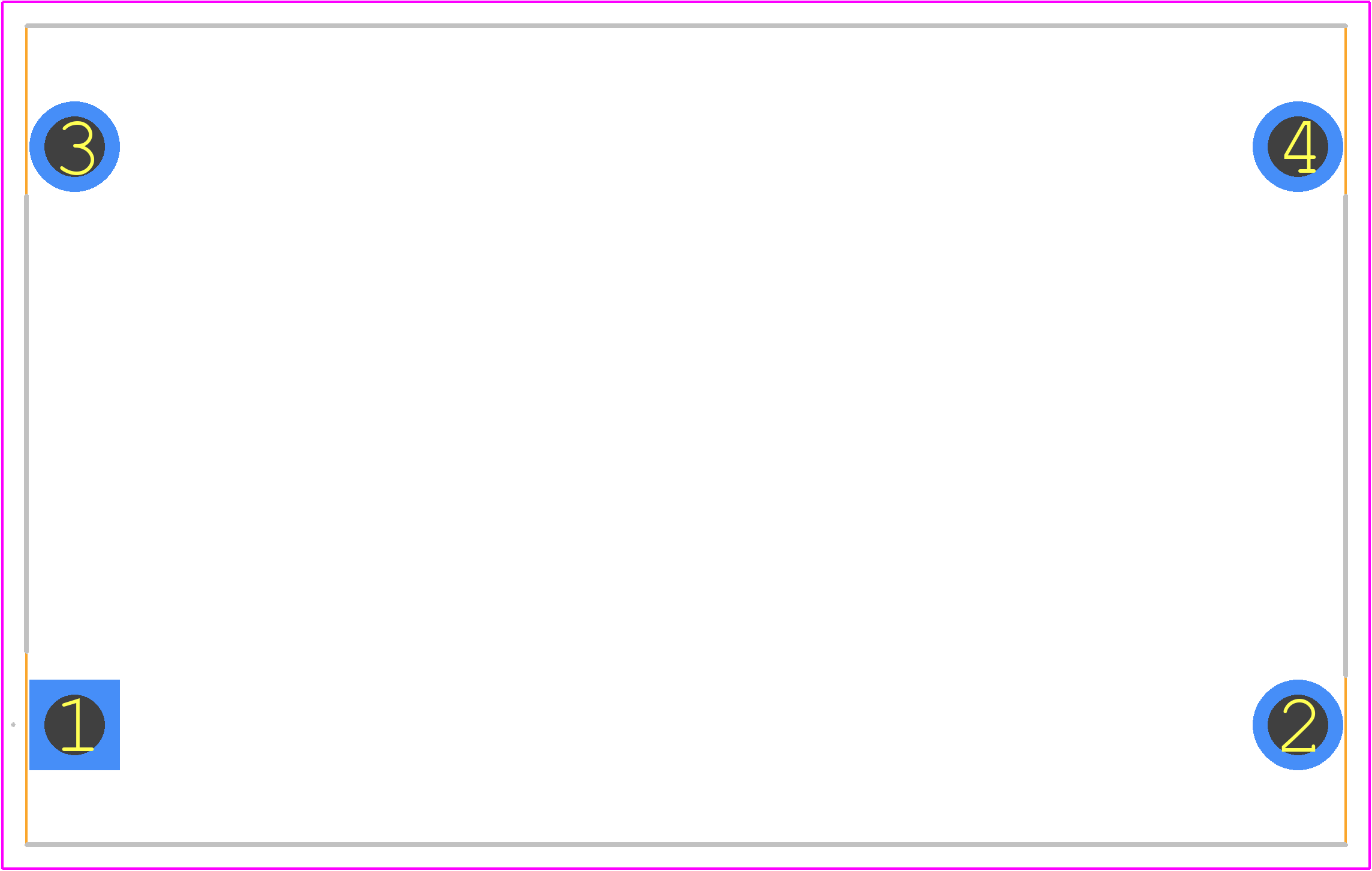

PCB Footprints

3D Models

MA-102-55E Details

The thermal resistance of the MA-102-55E is typically around 1.5°C/W, but this can vary depending on the specific application and mounting method.
The MA-102-55E is designed for general-purpose applications and may not be suitable for high-frequency applications above 100 kHz. For high-frequency applications, Ohmite recommends using their HF series resistors.
The MA-102-55E has a maximum operating temperature of 155°C, but derating is required above 125°C. For high-temperature applications, Ohmite recommends using their high-temperature resistors, such as the MAH series.
Yes, the MA-102-55E is RoHS compliant and meets the requirements of the European Union's Restriction of Hazardous Substances directive.
The recommended soldering temperature for the MA-102-55E is 260°C (500°F) for 3-5 seconds. However, it's recommended to follow the soldering guidelines provided by Ohmite or consult with their application engineers for specific guidance.

Community Provided

System Verified

Community Approved

Use the download button to access the MA-102-55E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MA-10, or try a keyword search, such as Heat Sinks
