MA-302-55E footprint, schematic symbol and 3D model by Ohmite

Symbol

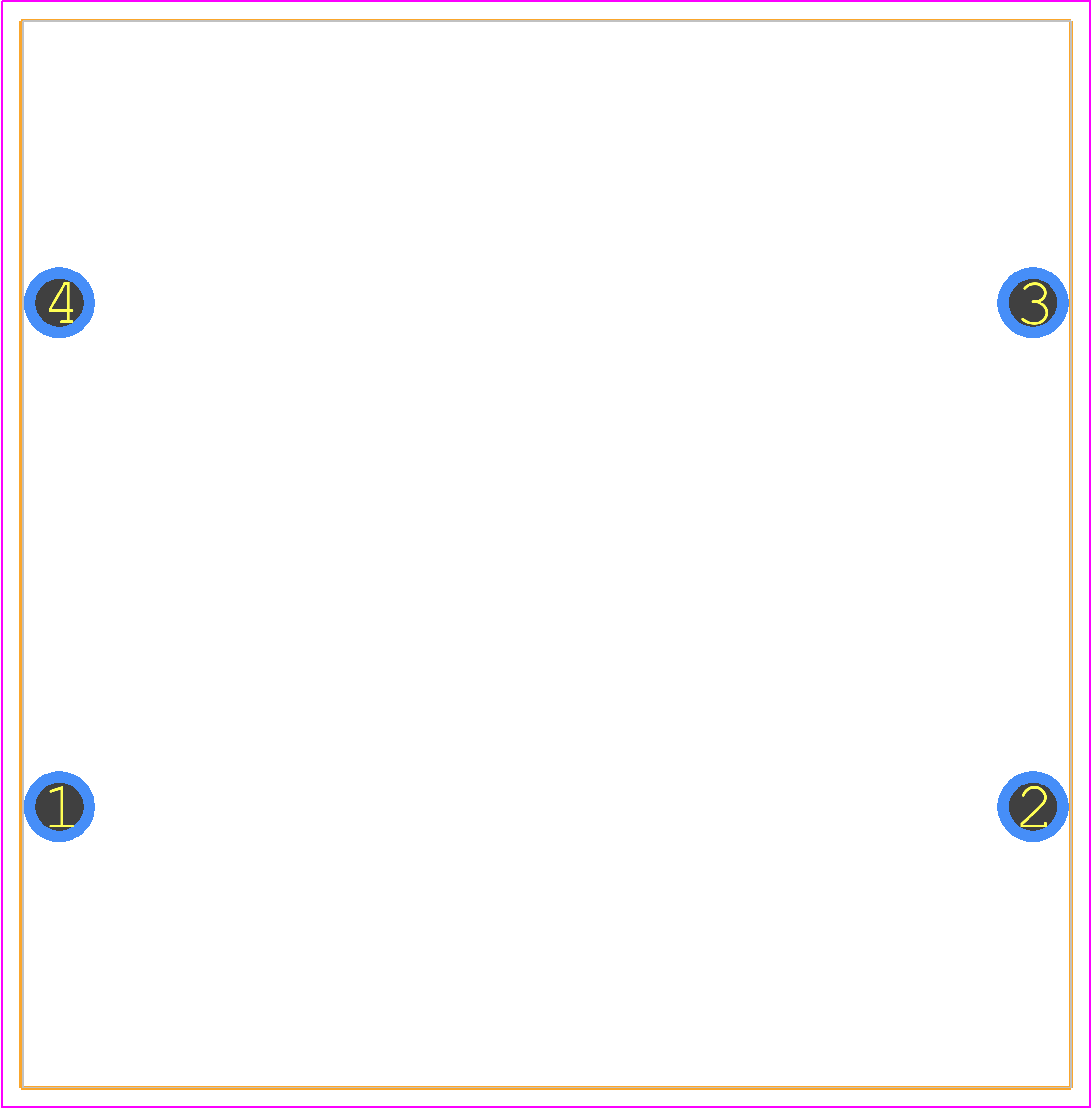

PCB Footprints

3D Models

MA-302-55E Details

The thermal resistance of the MA-302-55E is 1.5°C/W, which is relatively low, making it suitable for high-power applications.
Yes, the MA-302-55E is RoHS (Restriction of Hazardous Substances) compliant, making it suitable for use in European Union countries.
The maximum operating temperature of the MA-302-55E is 150°C, making it suitable for high-temperature applications.
Yes, the MA-302-55E is designed to operate in high-humidity environments, with a moisture sensitivity level (MSL) of 1, which means it can withstand humid environments without damage.
The power rating of the MA-302-55E is 55W, making it suitable for high-power applications.

Expert Contribution

System Verified

Community Approved

Use the download button to access the MA-302-55E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MA-30, or try a keyword search, such as Heat Sinks
