MA00L1NCQD - LITTELFUSE

Description: Rotary Switch 10 Position SP10T 250mA (AC/DC) 125 VAC Panel Mount, Through Hole

Download MA00L1NCQD Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MA00L1NCQD model

Email notifications will be applied after download.

Send part feedback

Symbol

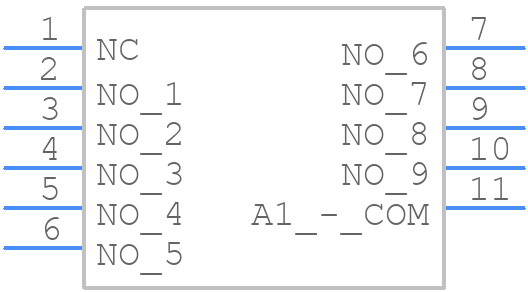

MA00L1NCQD - LITTELFUSE - PCB symbol

PCB Footprints

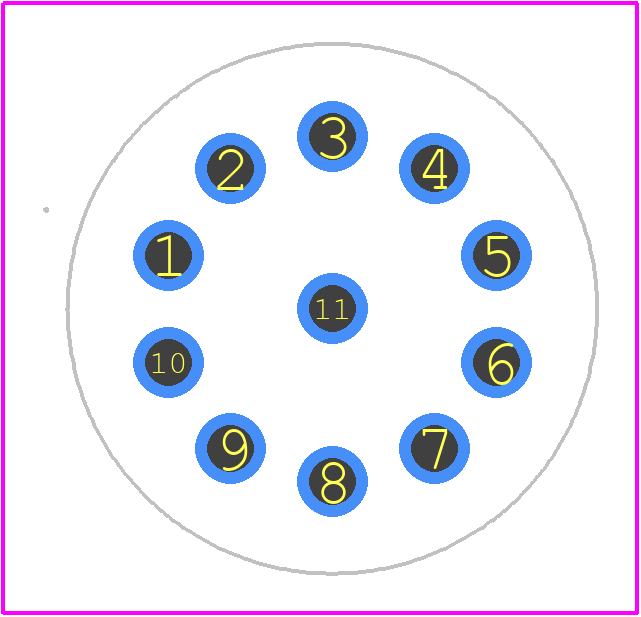

MA00L1NCQD - LITTELFUSE PCB footprint - Other - Other - MA00L1NCQD

3D Models

MA00L1NCQD - LITTELFUSE - 3D model - Other - MA00L1NCQD

Datasheet Download Datasheet
Stock & Prices Price & Stock for MA00L1NCQD
Part Number MA00L1NCQD
Manufacturer LITTELFUSE
Pin Count 11
Part Category Switch
Package Category Other
Footprint Name Other - MA00L1NCQD
Released Date Apr 24, 2018
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

MA00L1NCQD Details

Manufacturer Part Number:
MA00L1NCQD
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.50.90.20
Manufacturer:
Littelfuse Inc
YTEOL:
6

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MA00L1NCQD Overview

Use the download button to access the MA00L1NCQD schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MA00L, or try a keyword search, such as Rotary Switches
