MA04L2NCQD - LITTELFUSE

MA04L2NCQD Details

• Manufacturer Part Number:

  MA04L2NCQD

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.20

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  6

• Actuator Material:

  ZINC ALLOY

• Actuator Type:

  SCREW DRIVER SLOT, FLUSH

• Additional Feature:

  PANEL MOUNTABLE

• Body Height:

  9.4 mm

• Body Length or Diameter:

  13.34 mm

• Bushing Length:

  0.25 inch

• Bushing Type:

  1/4-28

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  .25A@125VAC

• Contact Current(AC)-Max:

  0.25 A

• Contact Current(DC)-Max:

  0.25 A

• Contact (DC) Max Rating R Load:

  .25A@28VDC

• Contact Resistance:

  0.02 mΩ

• Contact Timing:

  MAKE-BEFORE-BREAK

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  600VRMS V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  SILVER

• Housing Material:

  ZINC ALLOY

• Indexing Angle:

  36 deg

• Insulation Resistance:

  10000000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  4

• Number of Switch Sections:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

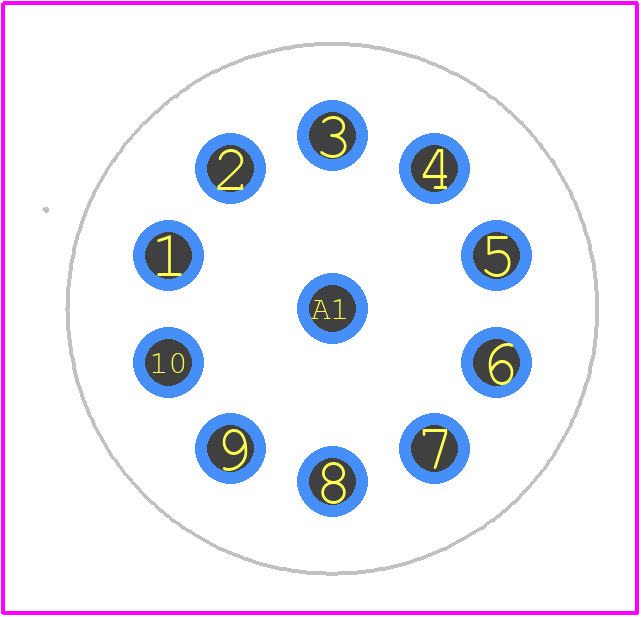

• PCB Hole Count:

  12

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SP4T

• Switch Type:

  ROTARY SWITCH

• Terminal Finish:

  Silver (Ag)

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
